RE PF
INDUSTRIAL CHAMBER FURNACE
MAX 600°
Our company, to complete the range of products for the pyrolysis process, introduces two models: RE PF and RE PFL.
Our company, to complete the range of products for the pyrolysis process, introduces two models: RE PF and RE PFL.
In both cases, the operation of these furnaces in the cleansing of filters and die plate packs is based on the process of "PYROLYSIS" according to which the hydrocarbon molecules, less stable if subject to heat, when subjected to certain thermal cycles, break (cracking) giving rise to simpler gaseous molecules.
In our case the pyrolysis obtained from the polymer which coats the parts, while a complete incineration process is realized, generates combustible gases which are subsequently brought to complete oxidation in the post-combustion chamber generating products perfectly suitable for release into the atmosphere.

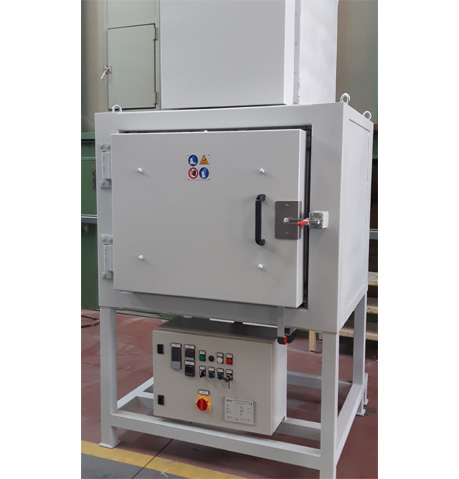

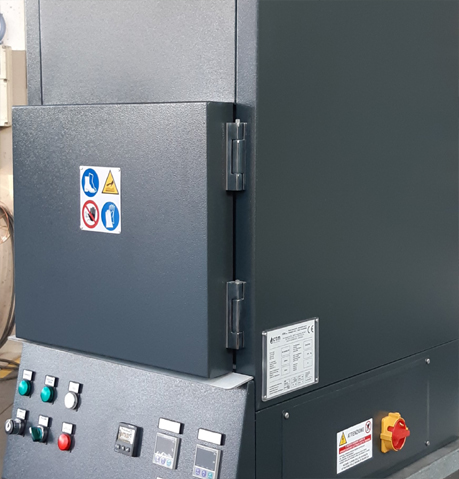

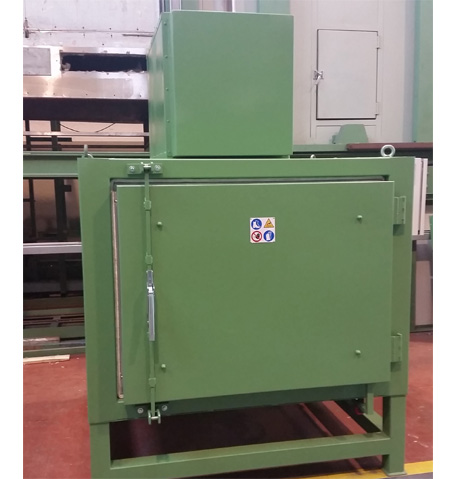

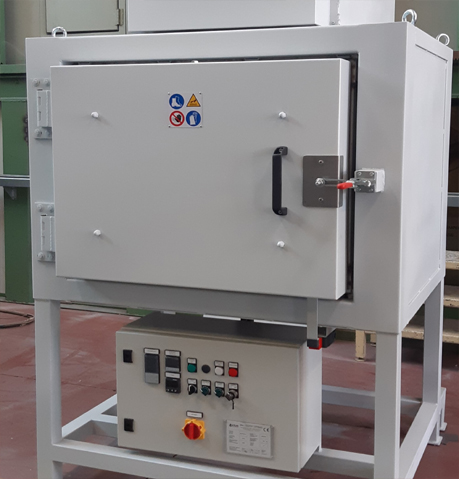

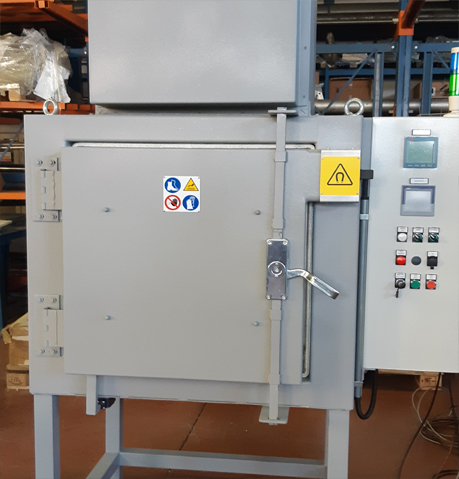

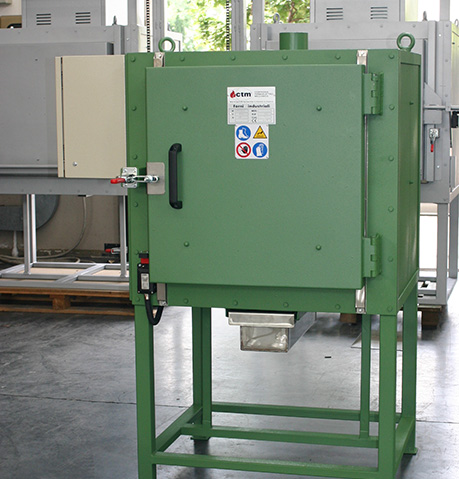

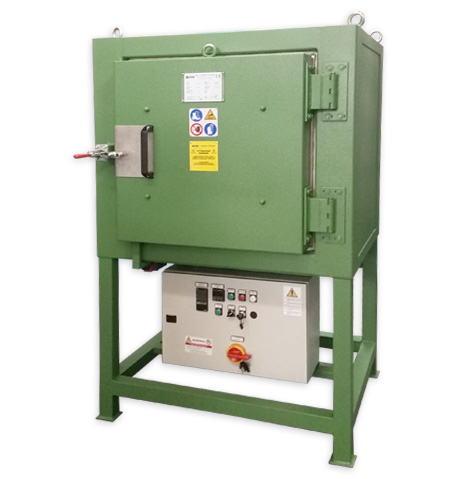

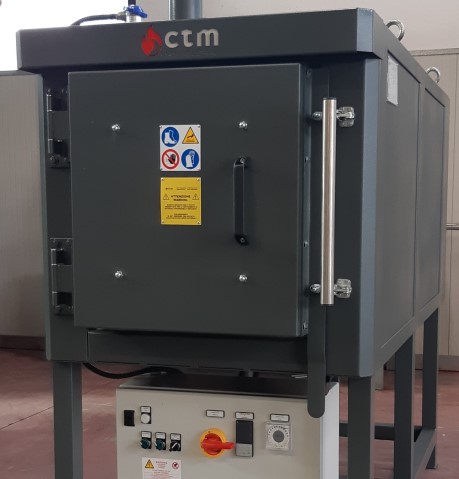

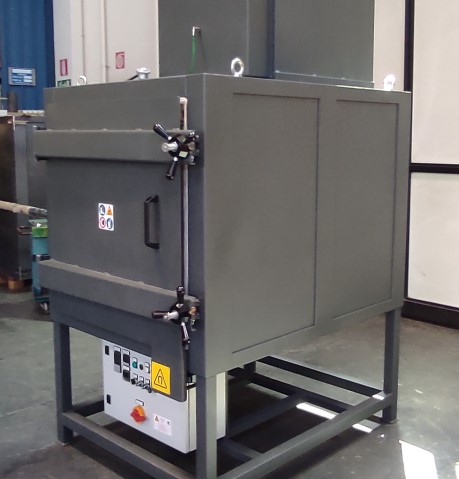

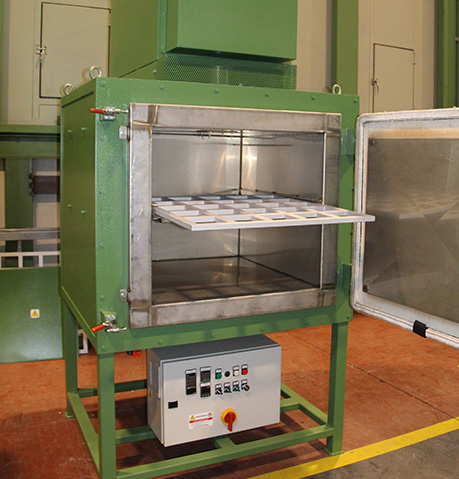

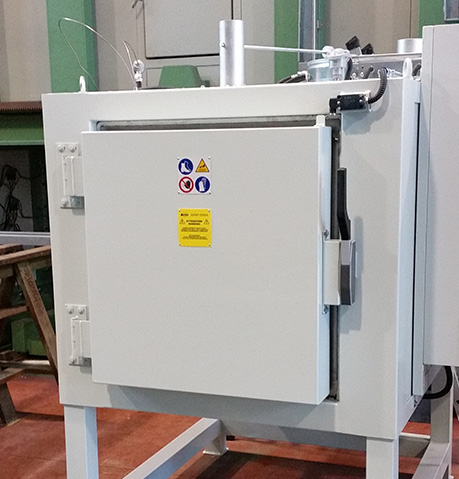

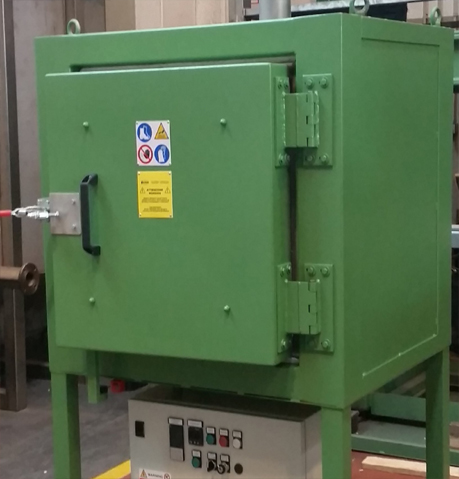

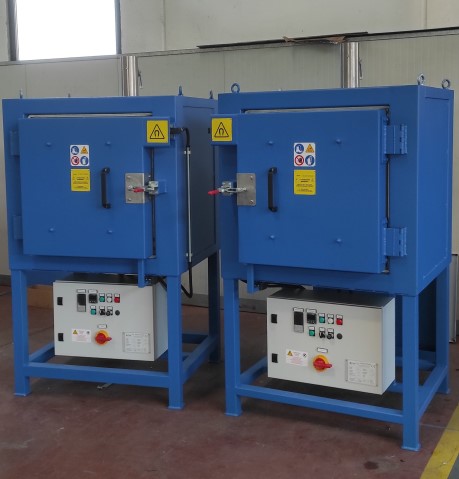

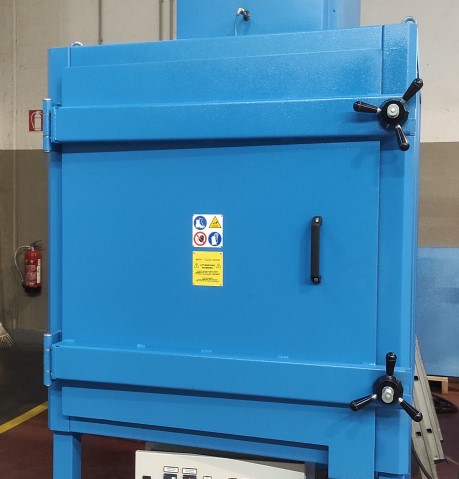

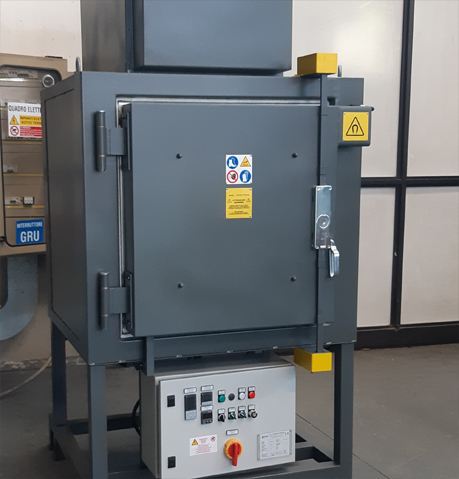

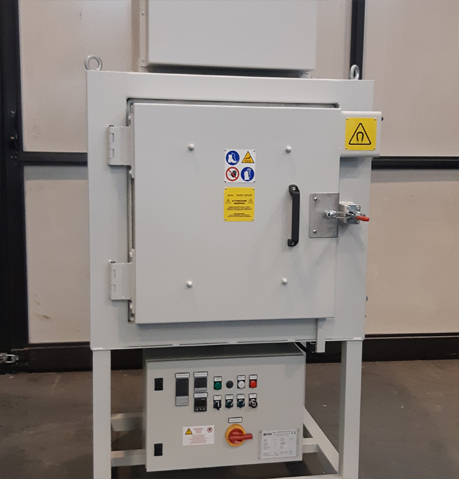

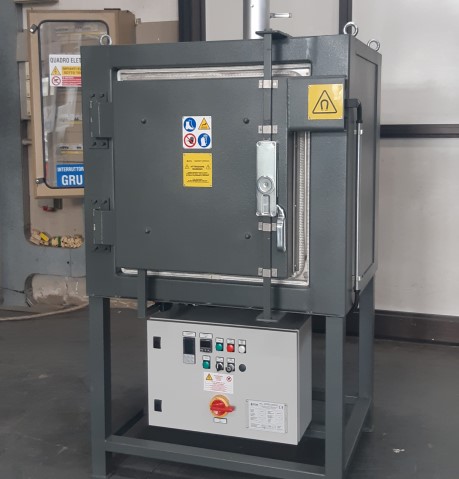

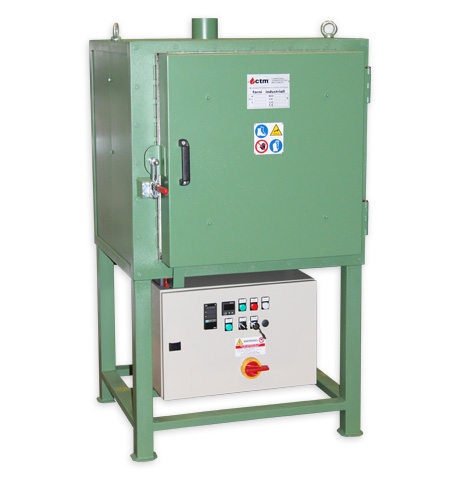

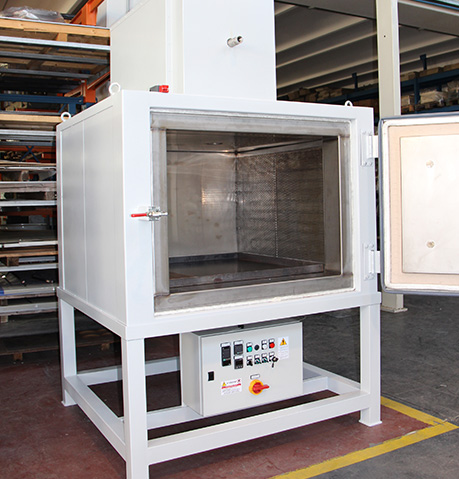

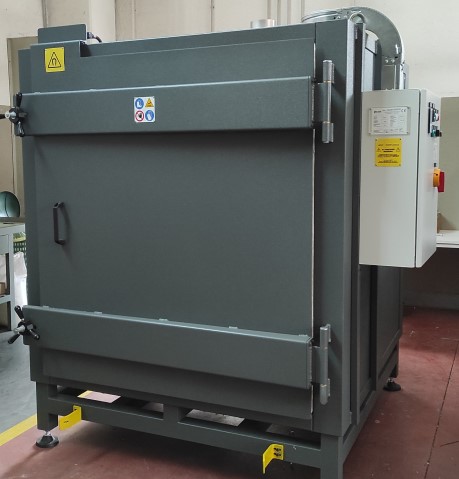

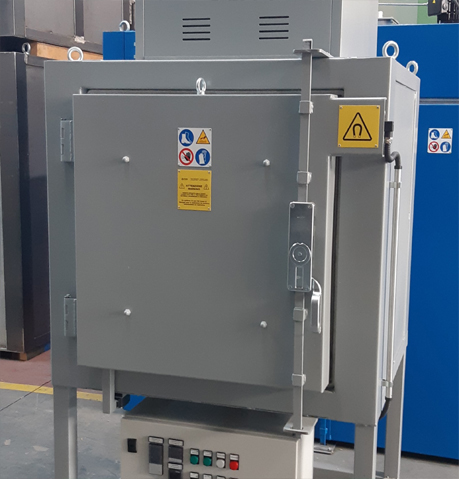

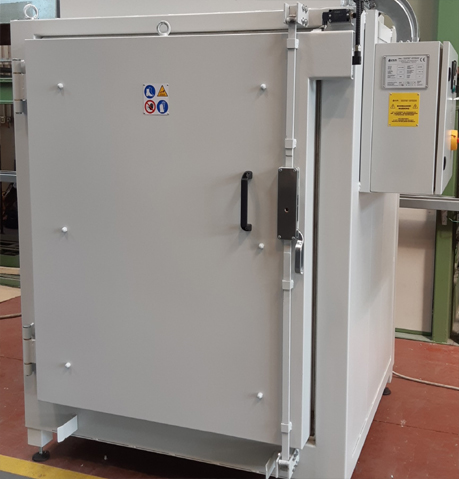

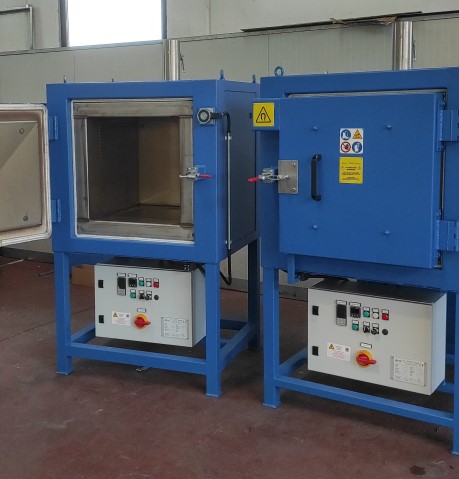

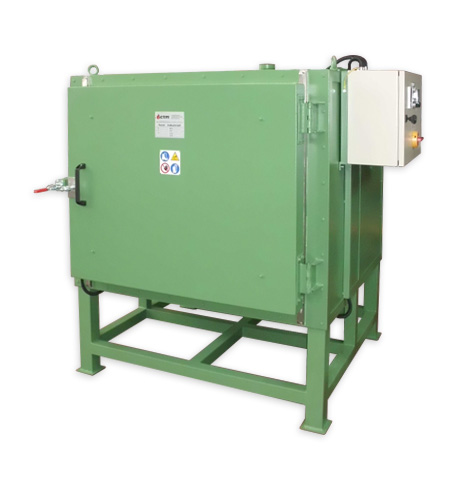

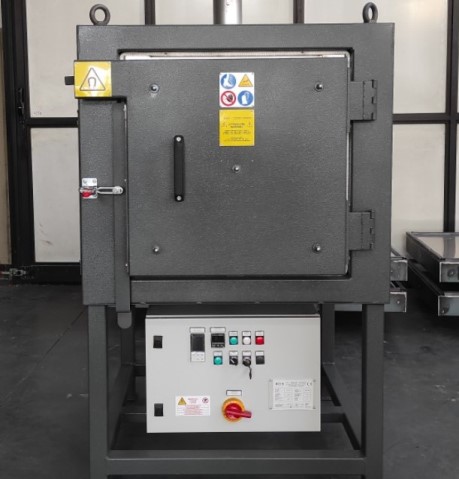

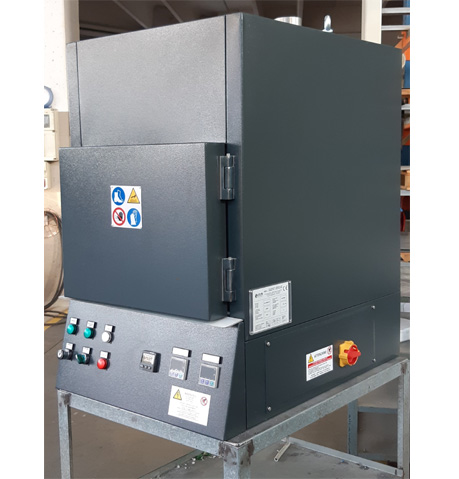

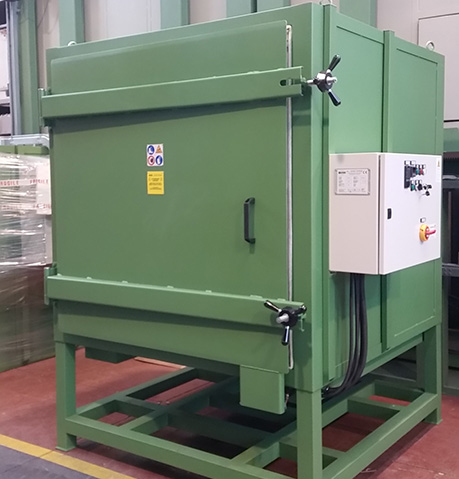

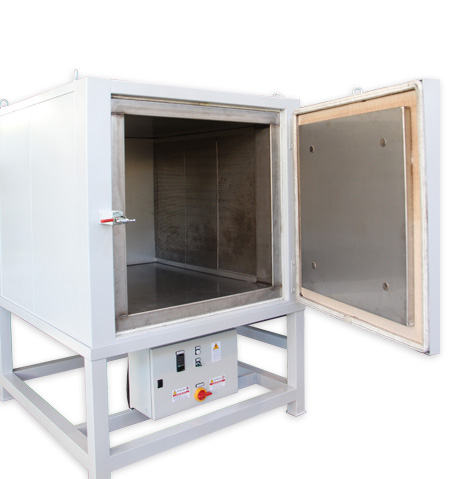

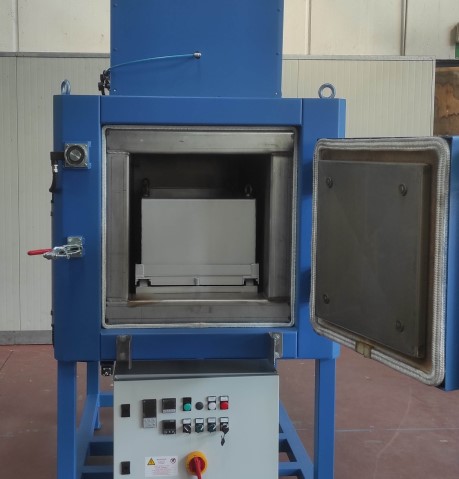

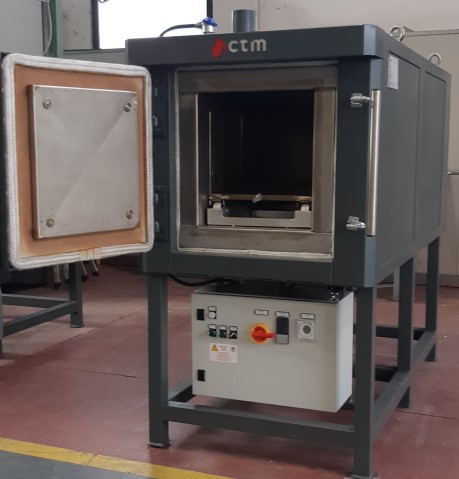

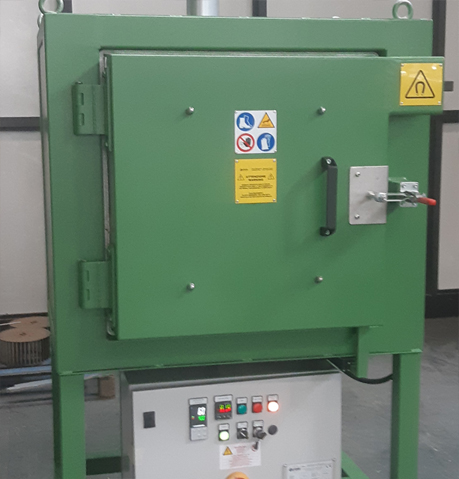

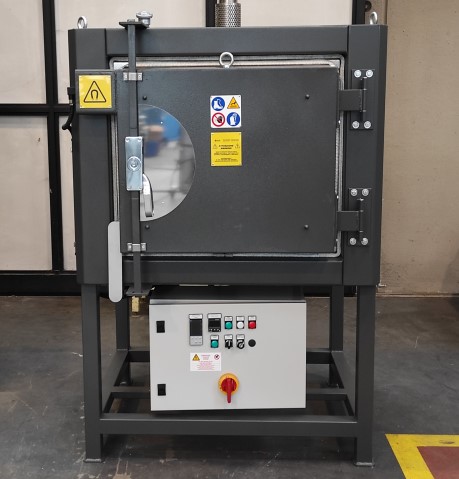

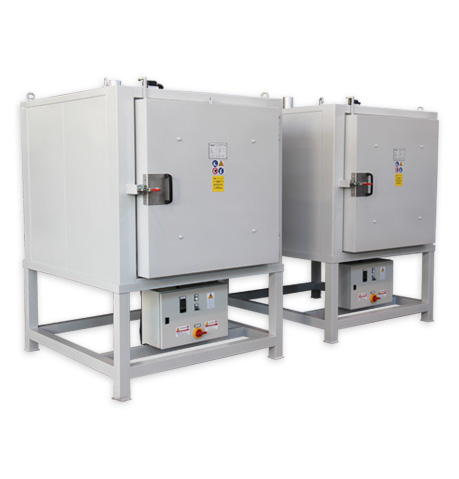

Specifically RE PF is a chamber furnace in stainless steel sheet.
Direct or indirect heating is obtained by means of sets of electrical resistances.
If requested, post-combustors are available, that will be connected directly to the flue gas stack of the treatment.

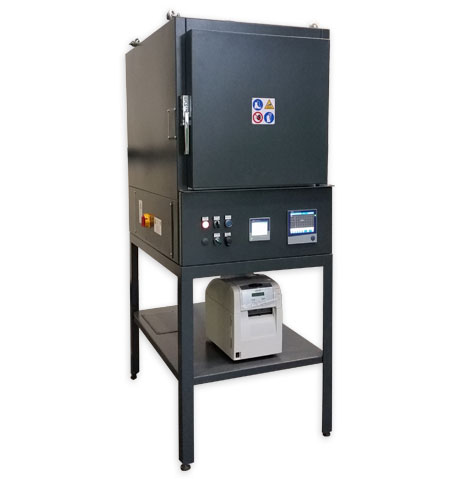

- Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.

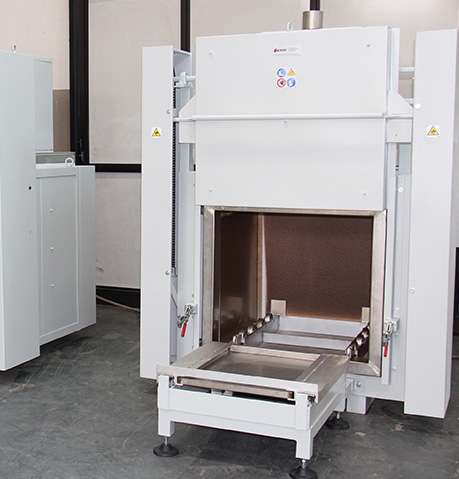

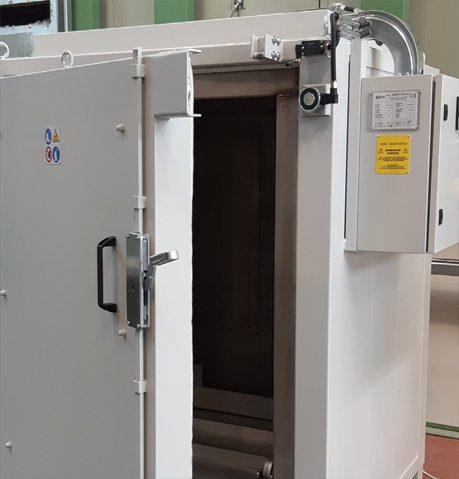

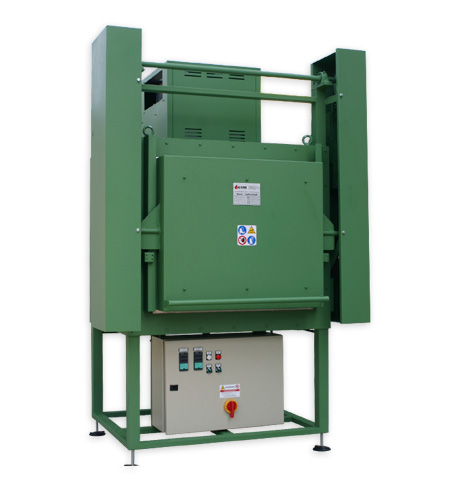

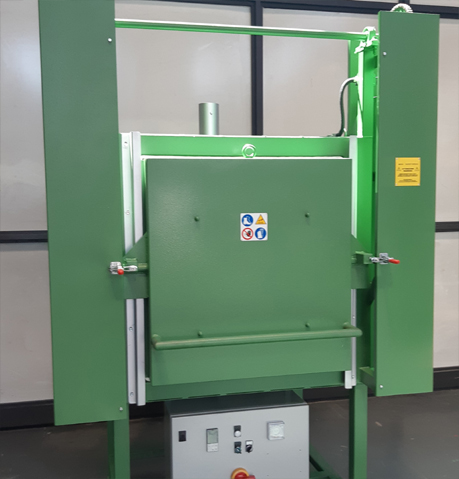

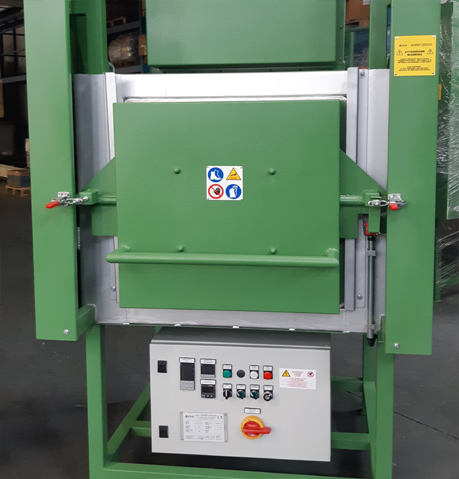

- Door opening: with hinge or counterbalanced guillotine with manual or servo-assisted handling system.
- Pyrolytic treatment in reducing atmosphere
- Cleaning of packs and die plates
- Cleaning of filters
- Cleaning of extrusion screws

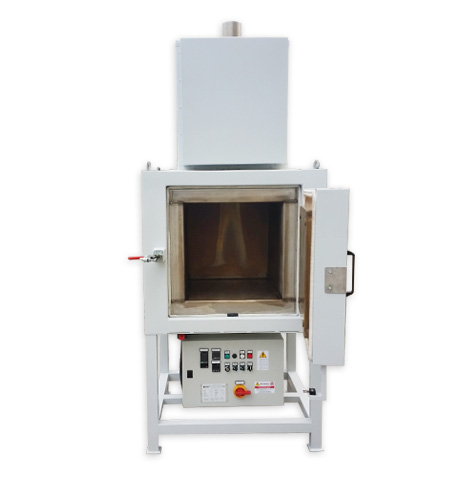

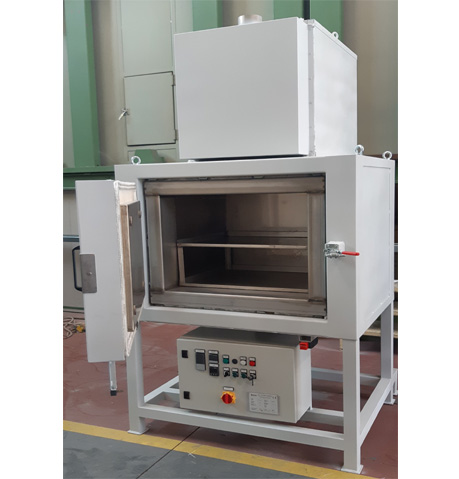

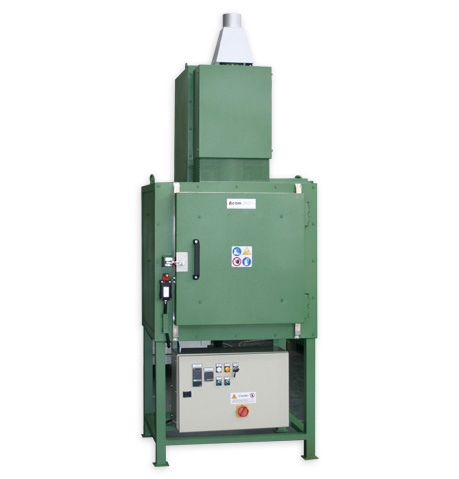

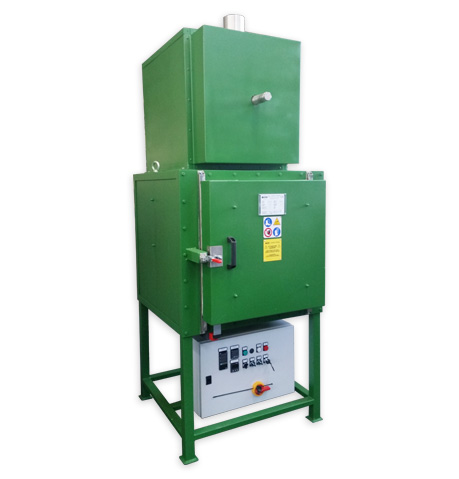

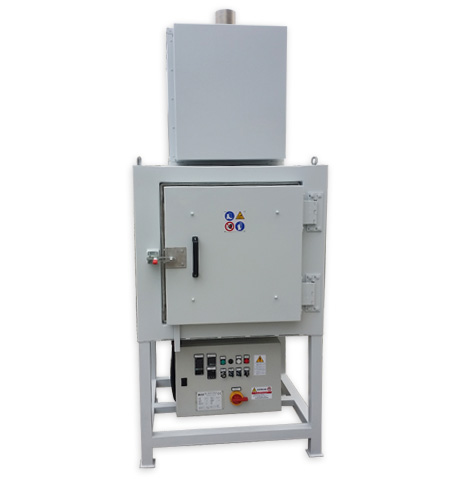

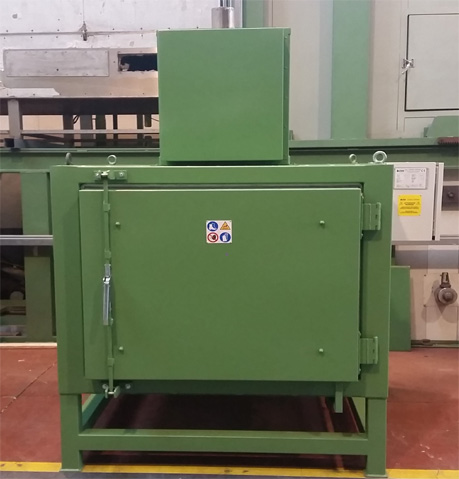

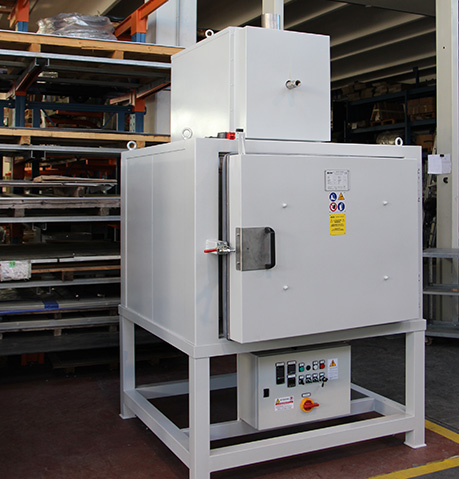

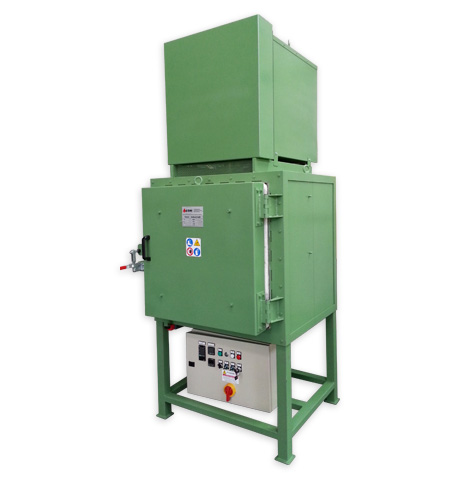

Post-combustor.
Hood positioned on the door.

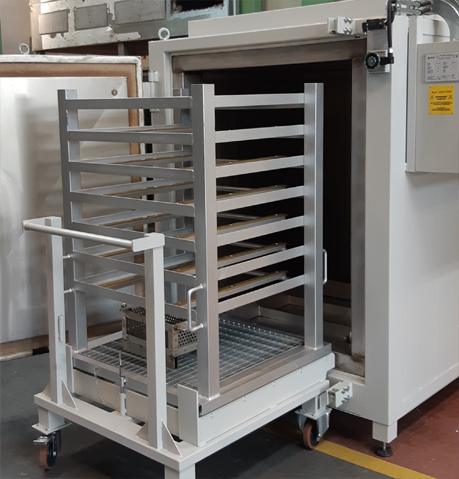

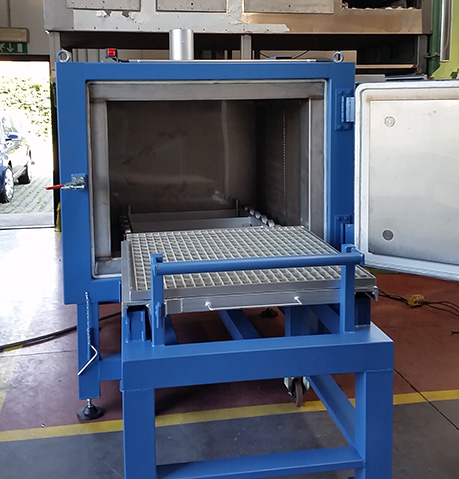

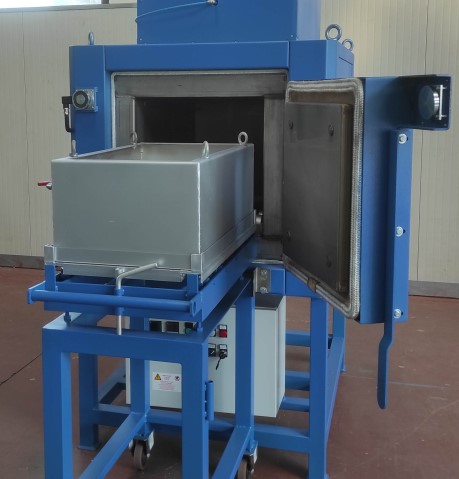

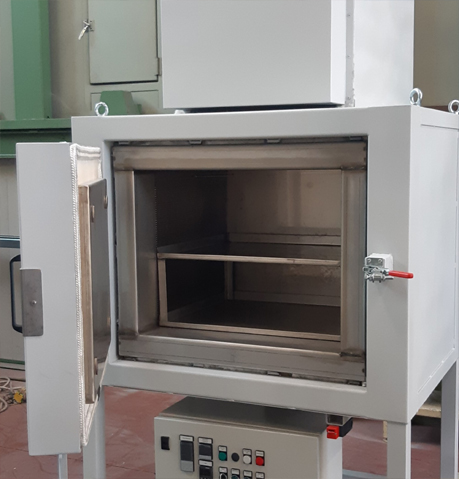

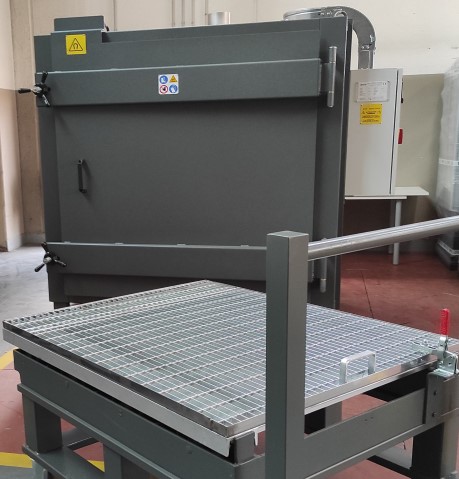

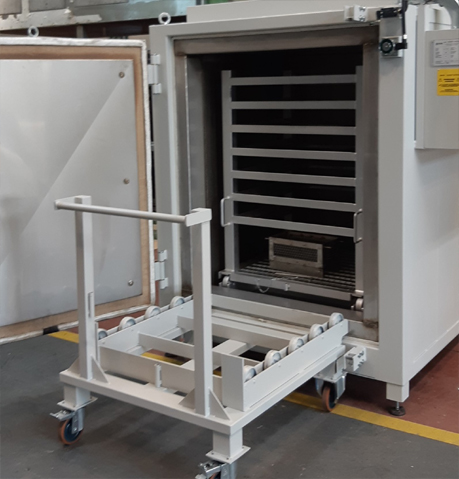

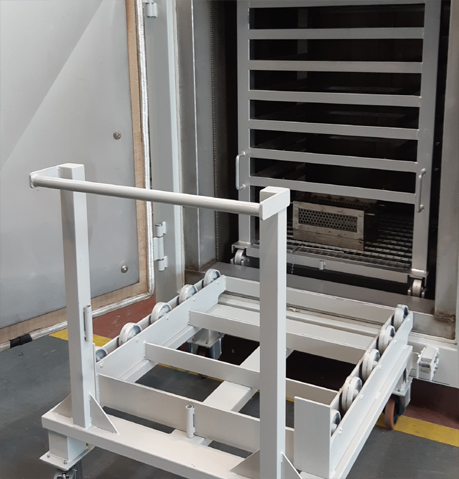

Dollies with mobile or fixed shelves in stainless steel sheet.
Specific equipment for individual needs.
| Model RE PF |
Useful dimensions of the chamber | Rated power | Capacity | ||
| Width | Height | Depth | Kw | Lt | |
| RE PF/0COMBI | 350 | 250 | 450 | 6 +3 | 39 |
| RE PF/0 | 300 | 300 | 400 | 6 | 36 |
| RE PF/1 | 400 | 400 | 500 | 8 | 80 |
| RE PF/2 | 500 | 500 | 500 | 10 | 125 |
| RE PF/ST | 700 | 500 | 600 | 15 | 210 |
| RE PF/ST PD | 600 | 760 | 600 | 18 | 273 |
| RE PF/3 | 650 | 650 | 750 | 15 | 317 |
| RE PF/4 | 750 | 600 | 750 | 16 | 337 |
| RE PF/5 | 1000 | 750 | 1000 | 24 | 750 |
| RE PF/6 | 1000 | 1000 | 1200 | 35 | 1200 |
| RE PF/7 | 1200 | 1200 | 1500 | 50 | 1440 |
