RE PPFL
INDUSTRIAL CHAMBER OVEN
MAX 300°
For pre-heating processes that require functional dimensions of the chamber larger than the model RE PPF, our company has included in the range of products the furnace RE PPFL.
For pre-heating processes that require functional dimensions of the chamber larger than the model RE PPF, our company has included in the range of products the furnace RE PPFL.
Sets of electric resistances placed within the chamber determine the heating of direct type, while the housing is presented as a metallic structure with walls of stainless steel.

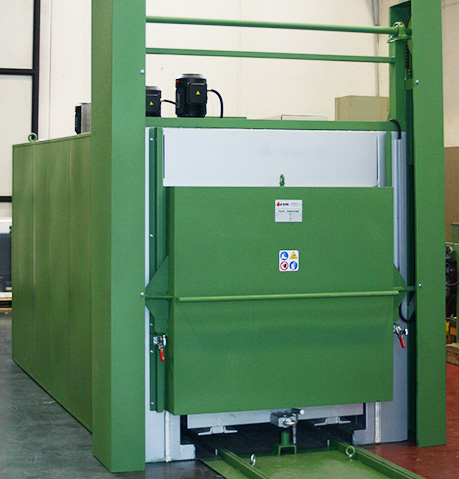

Door opening: with hinge or counterbalanced guillotine with manual or servo-assisted handling system.
- Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.
- Preheating of packs and die plates
- Preheating of filters
- Preheating of extrusion screws

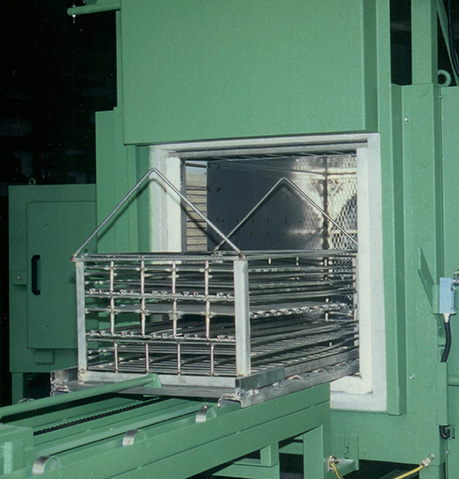

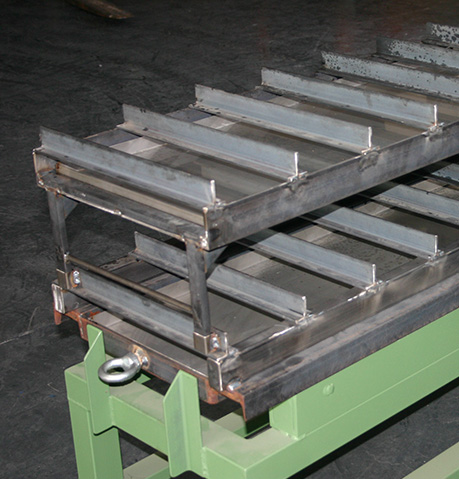

Dollies with mobile or fixed shelves in stainless steel sheet.
Specific equipment for individual needs.
| Model RE PPFL |
Useful dimensions of the chamber | Rated power | Capacity | ||
| Width | Height | Depth | Kw | Lt | |
| RE PPFL/1 | 500 | 500 | 2000 | 24 | 500 |
| RE PPFL/2 | 750 | 750 | 1500 | 30 | 840 |
| RE PPFL/3 | 750 | 750 | 2000 | 35 | 1125 |
| RE PPFL/4 | 750 | 750 | 2500 | 40 | 1580 |
| RE PPFL/5 | 750 | 750 | 3000 | 45 | 1685 |
| RE PPFL/6 | 750 | 750 | 3500 | 55 | 1970 |
