G-FB
FLUE GAS POST BURNER - INDUSTRIAL OVEN
MAX 950°
The modelling of the inner chamber of our green line of Post Combustors, Model "G-FB" presents a new "labyrinth system" configuration.

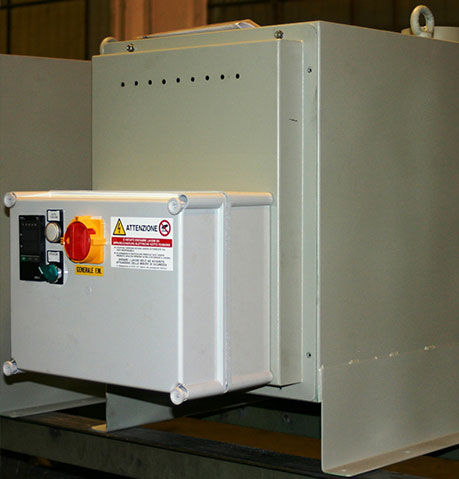

The modelling of the inner chamber of our green line of Post Combustors, Model "G-FB" presents a new "labyrinth system" configuration. The top quality of material and the accessories used for construction differ depending on the type of power used for combustion, whose temperature is managed by the innovative applications of the electric cabinet.
The model for high temperatures is provided with a flue gas exhauster.
- Thermal oxidation fumes
| Model G-FB |
External dimensions | Chimney dimension | Rated power | Temperature °C | ||
| Width | Height | Depth | Diameter | Kw | ||
| G-FB/0 | 500 | 600 | 700 | 90 | 3,5 | ≥850 |
| G-FB/1 | 600 | 600 | 800 | 115 | 6 | ≥850 |
| G-FB/2 | 700 | 700 | 1000 | 115 | 12 | ≥850 |
| G-FB/3 | 700 | 700 | 1300 | 140 | 16 | ≥850 |
| G-FB/4 | 700 | 700 | 1600 | 140 | 18 | ≥850 |
