RE PPF
INDUSTRIAL CHAMBER OVEN

MAX 300°

For activities that require a furnace capable of pre-heating dies and related equipment or products in general, we have included a machine able to perform such work.

For activities that require a furnace capable of pre-heating dies and related equipment or products in general, we have included a machine able to perform such work.

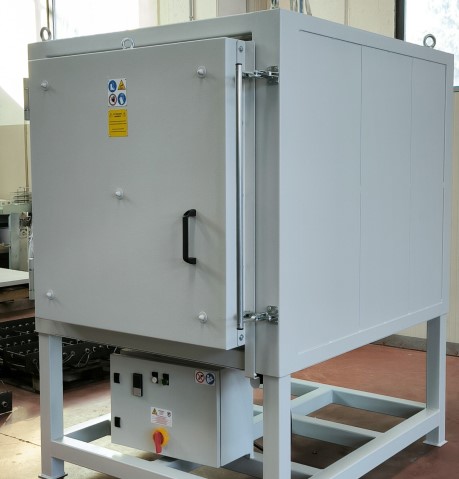

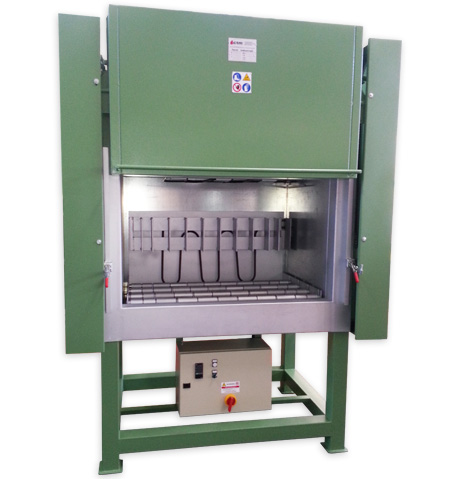

The model RE PPF is a non-ventilated chamber furnace that gets the heating from the chamber in a direct way through the sets of electrical resistances.
Electronic adjustments of temperature are realized through static power relays with the possibility of programming and data logging.

Stainless steel sheets constitute the casing of the furnace

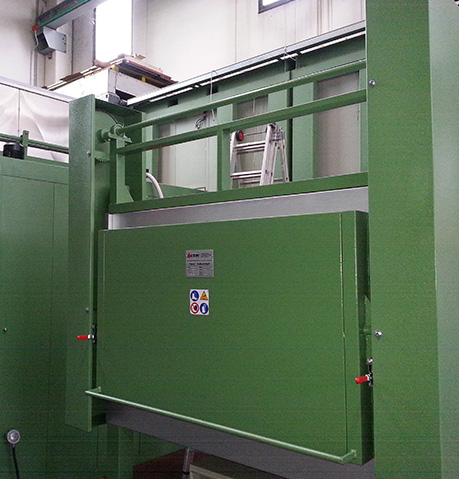

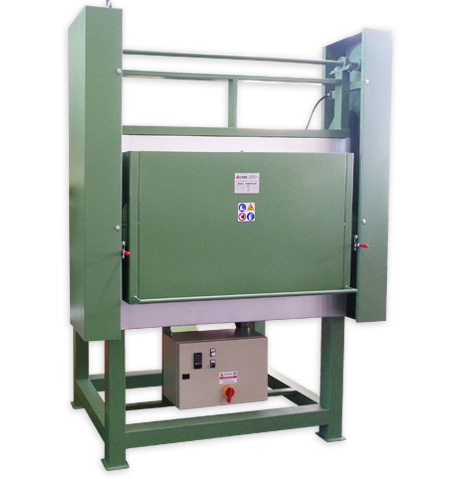

Door opening: with hinge or counterbalanced guillotine with manual or servo-assisted handling system.

Preheating of packs and die plates
Preheating of filters
Preheating of extrusion screws

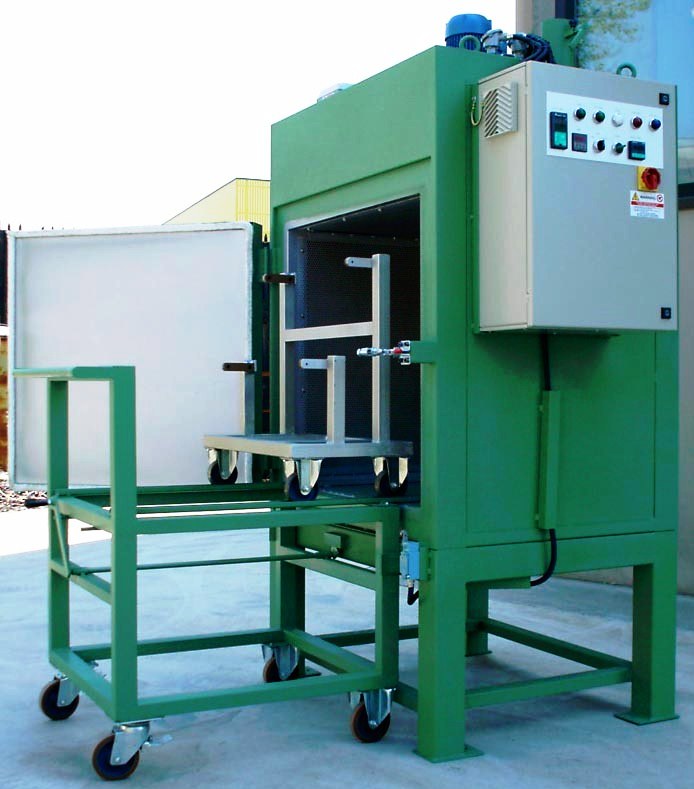

Dollies with mobile or fixed shelves in stainless steel sheet.
Specific equipment for individual needs.

Model RE PPF	Useful dimensions of the chamber			Rated power	Capacity
Model RE PPF	Width	Height	Depth	Kw	Lt
RE PPF/0	300	300	400	6	36
RE PPF/1	400	400	500	8	80
RE PPF/2	500	500	500	10	125
RE PPF/3	650	650	750	15	317
RE PPF/4	750	600	750	16	337
RE PPF/5	1000	750	1000	24	750
RE PPF/6	1000	1000	1200	35	1200
RE PPF/7	1200	1200	1500	50	1440
