TCE
INDUSTRIAL PIT OVEN
MAX 600°

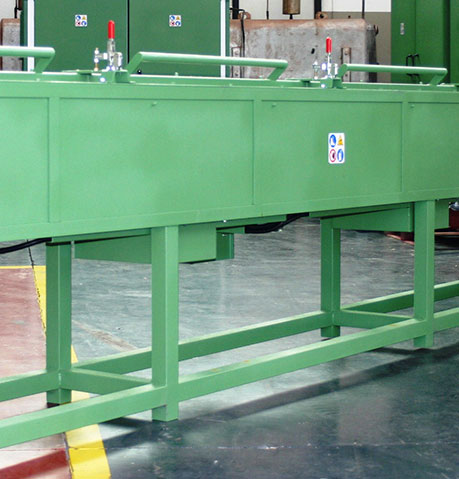

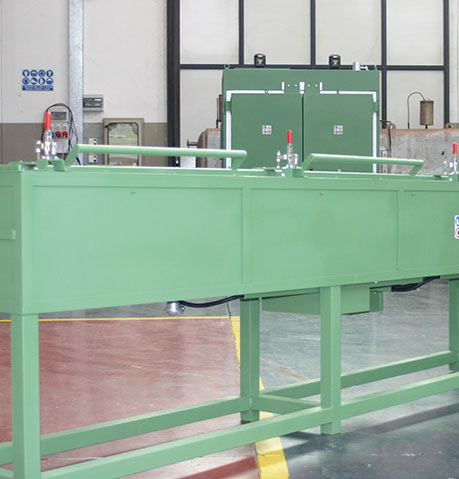

The TCE model is a pit furnace that can reach operating temperatures of up to 600°C.
Designed for the treatment of electrical cables with conveyor, it can be customized to perform thermal processes which require in line treatment.
The TCE model is a pit furnace that can reach operating temperatures of up to 600°C.
Designed for the treatment of electrical cables with conveyor, it can be customized to perform thermal processes which require in line treatment.

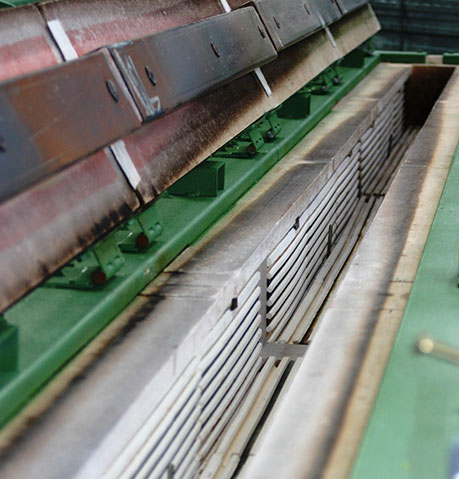

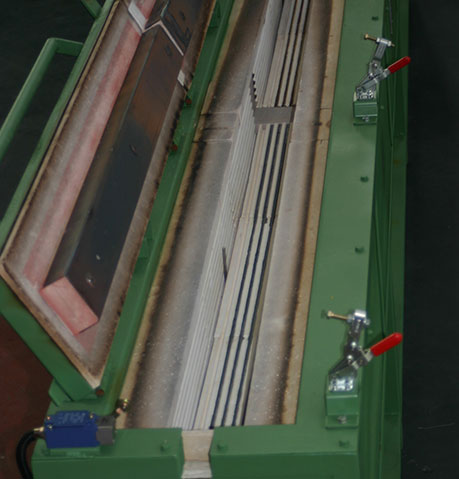

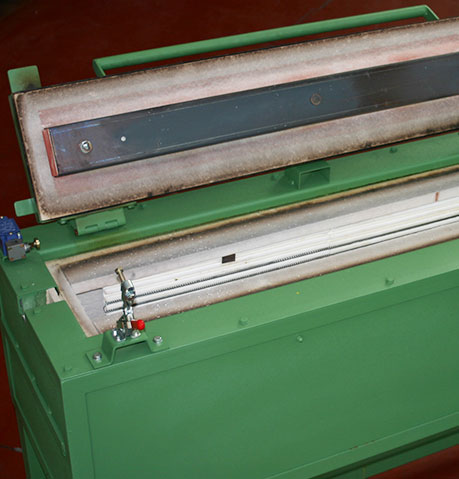

TEC is a metal construction with walls of stainless steel sheet with the internal chamber that contains the exposed resistances.
Electric heating occurs by means of sets of resistances positioned uniformly on the walls of the furnace.
- Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.
- Cover opening/closing system: manual or servo-assisted.
- Treatment of electric cables with conveyor
| Model TCE |
Useful dimensions of the chamber | Rated power | ||
| Width | Height | Depth | Kw | |
| TCE/0 | 150 | 150 | 2500 | 20 |
| TCE/1 | 150 | 150 | 5000 | 40 |
