PT ESPT
INDUSTRIAL VENTILATED CHAMBER OVEN
MAX 500°

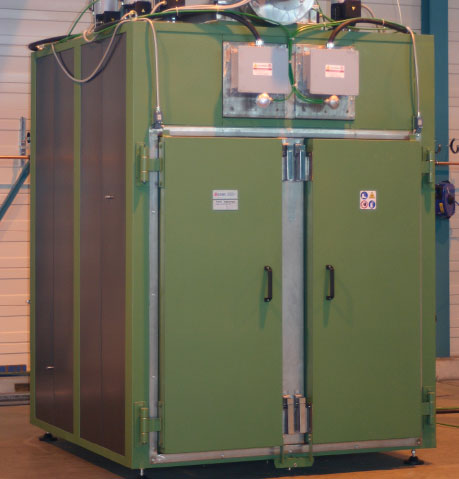

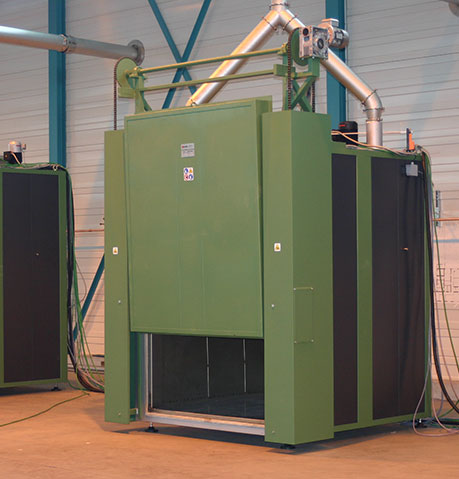

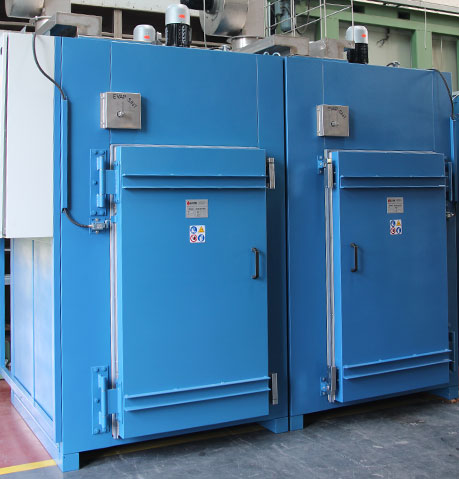

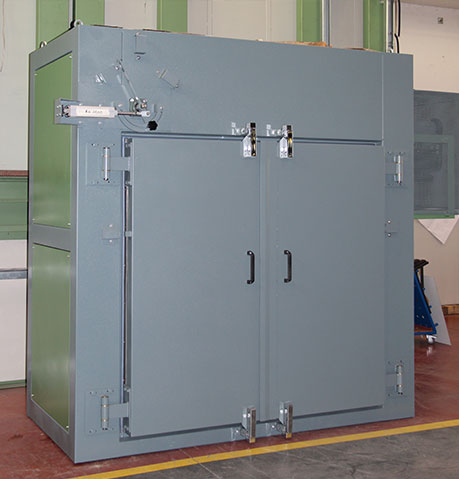

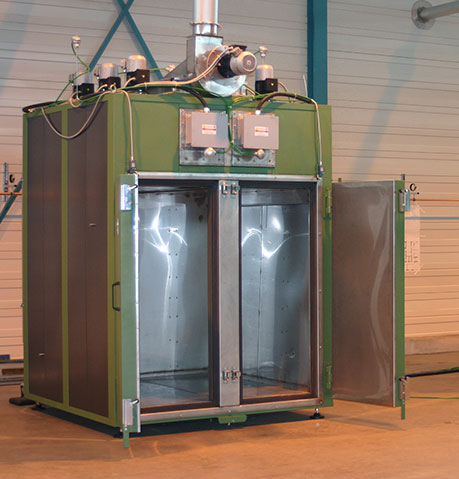

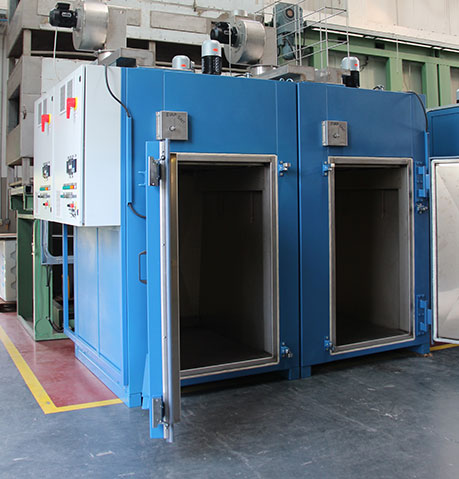

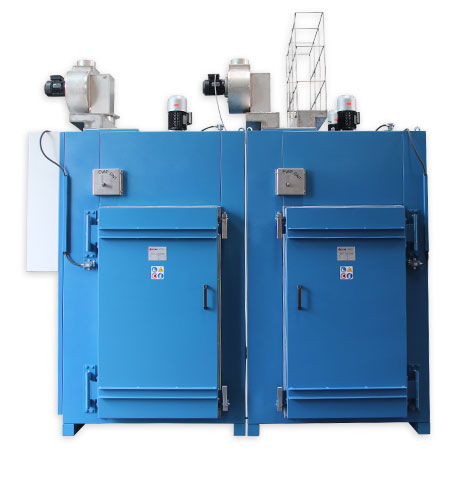

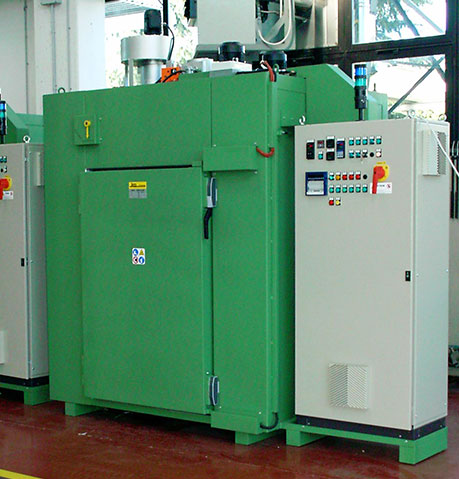

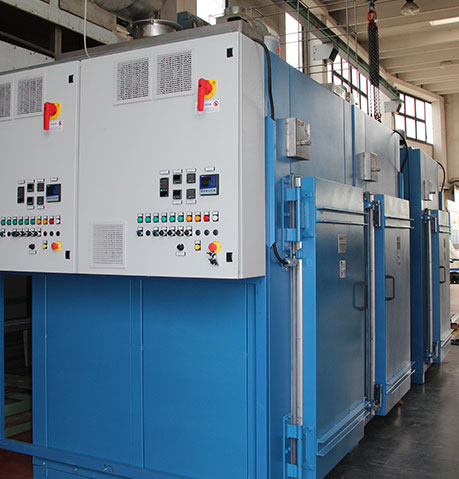

In the product range of the "PT" line, our company offers the model ESPT, designed to dry and pre-sinter PTFE powders and polymers in general.
In the product range of the "PT" line, our company offers the model ESPT, designed to dry and pre-sinter PTFE powders and polymers in general.

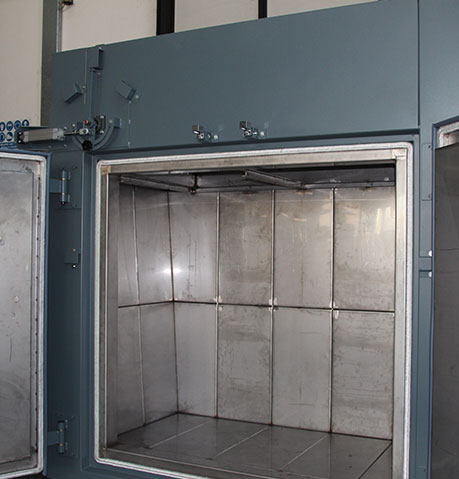

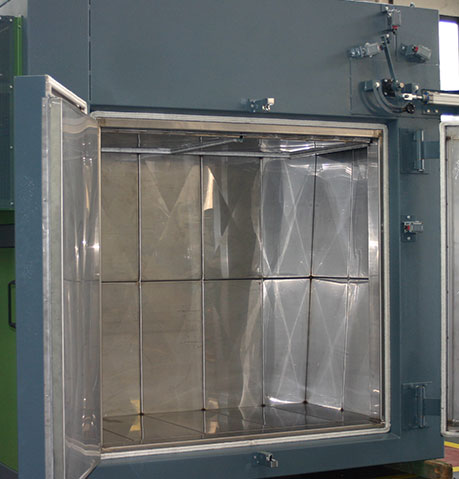

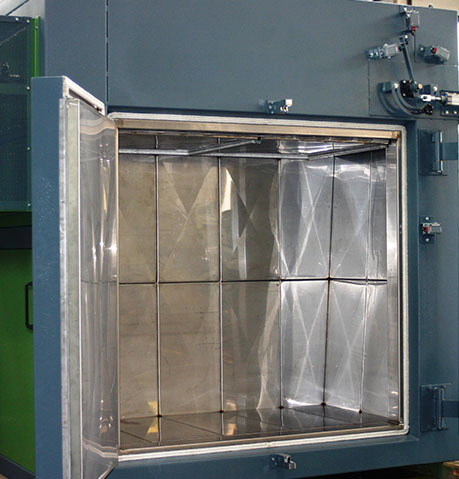

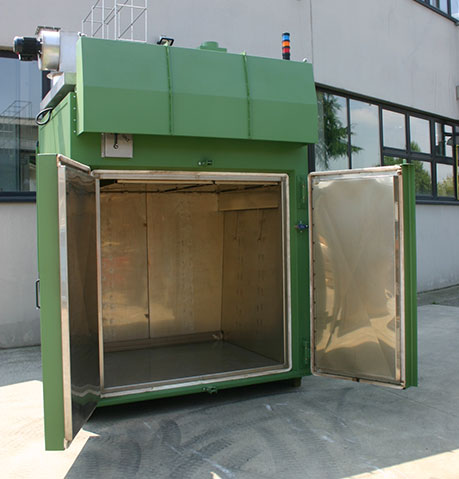

The special structure made of stainless steel sheet allows optimal air circulation for the pre-sintering process.
The heating is electric and the resistance units used feature low surface load and high exchange power and are positioned in the air circuit.
The ESPT oven operates with a dual option of air circulation:
an open loop during the drying stages and a closed loop during the pre-sintering with horizontal split currents, using special fans for high temperatures.
The optimization of the circulation is realized by flow adjustments.
- Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.

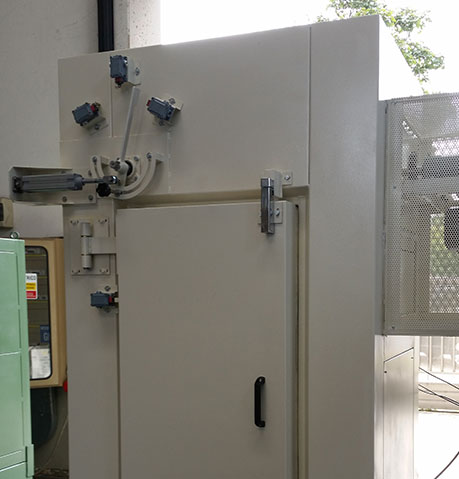

- Exhausted air removal valve and dry air intake during drying stages with manual or servo-assisted adjustment.

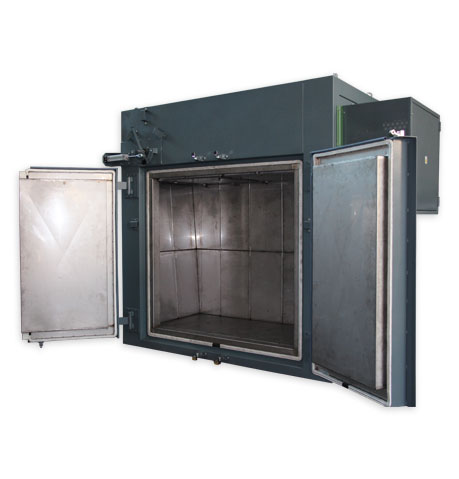

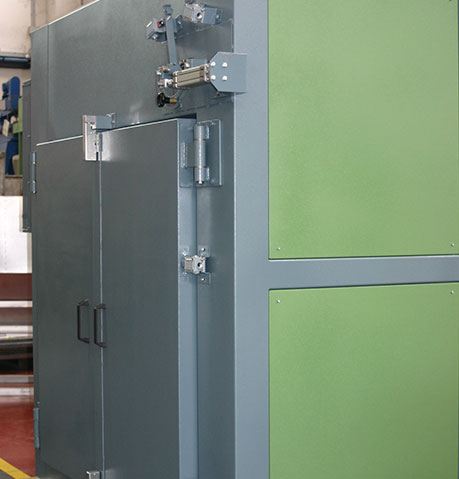

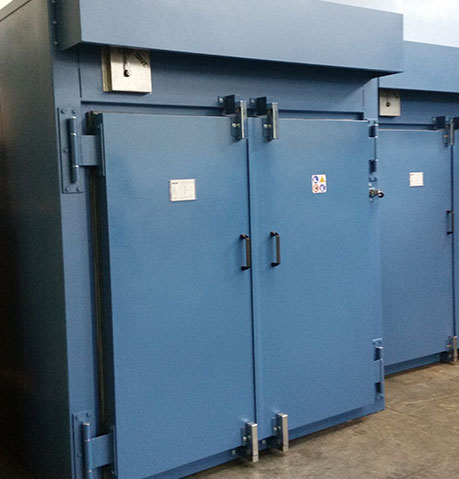

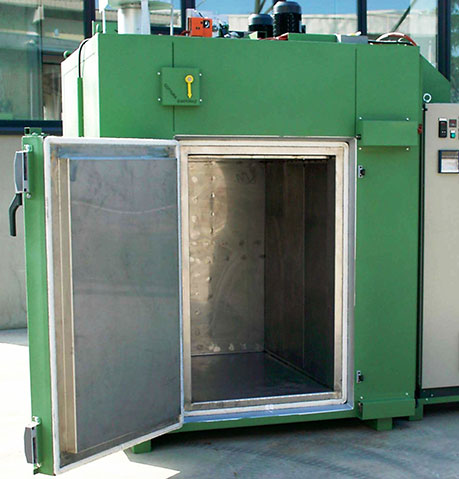

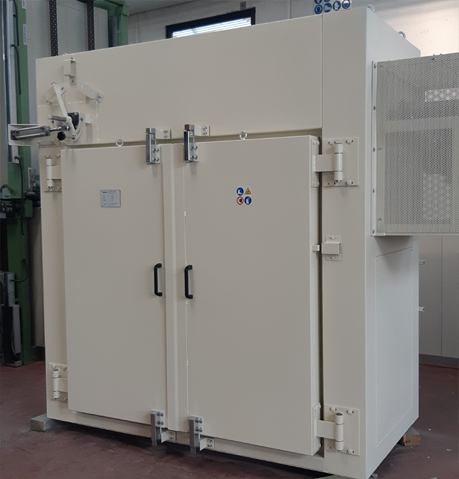

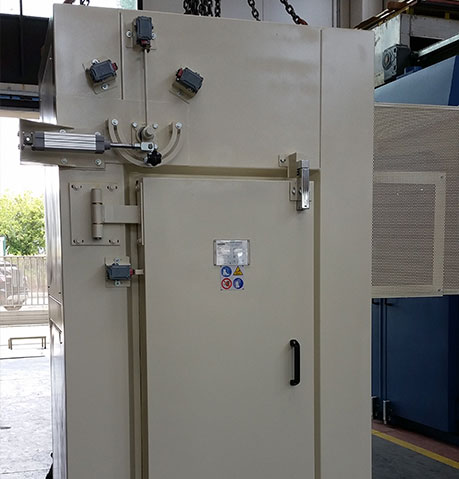

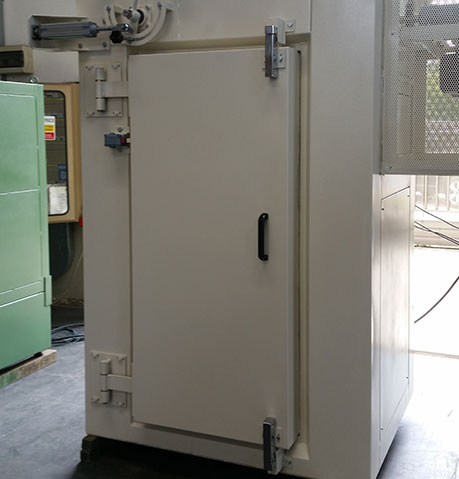

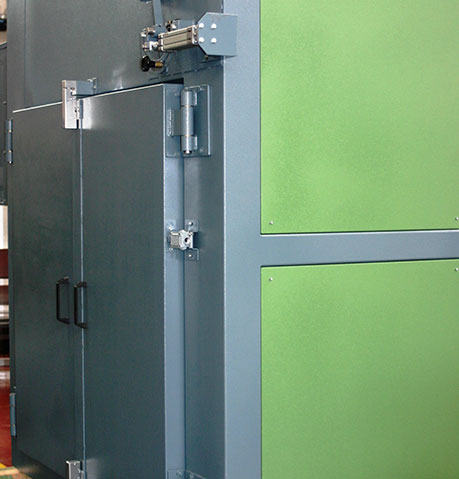

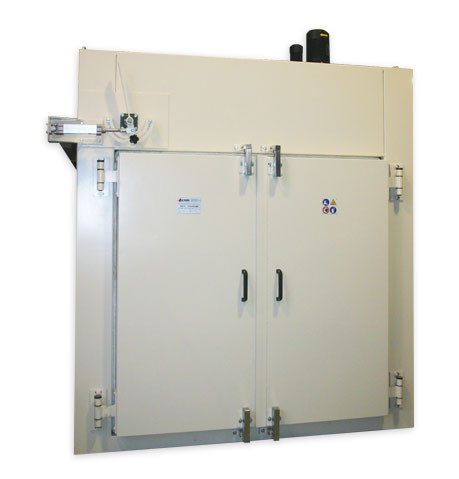

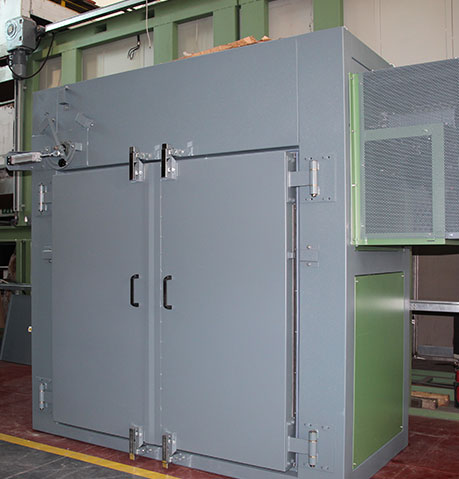

- Door opening with hinge and safety system.
- Drying and pre-sintering of PTFE powders

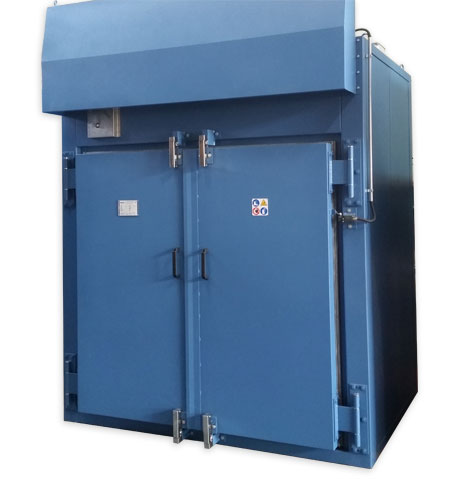

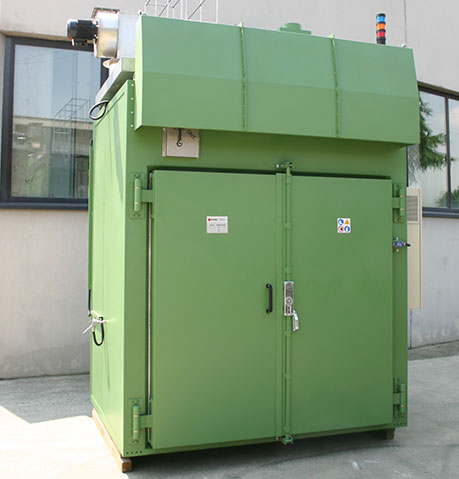

Hood positioned on the door.

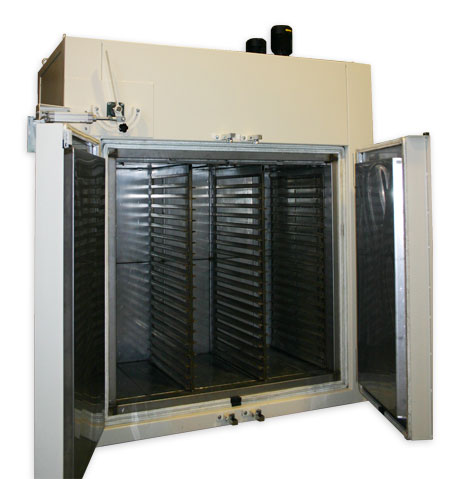

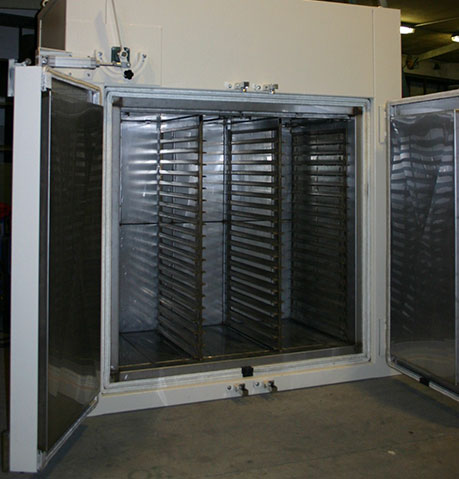

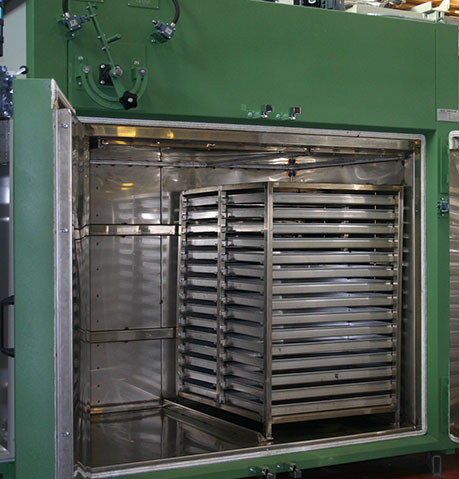

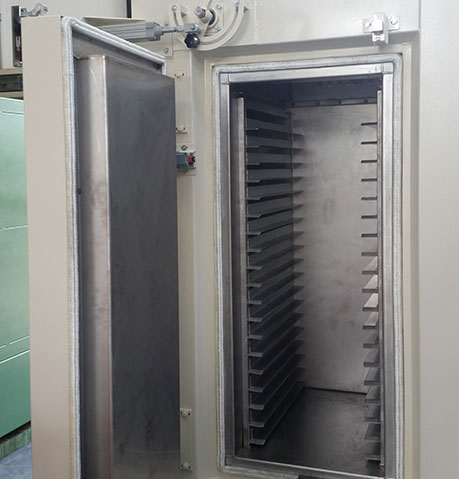

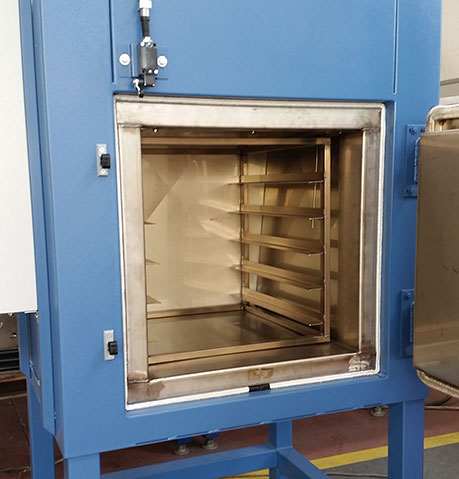

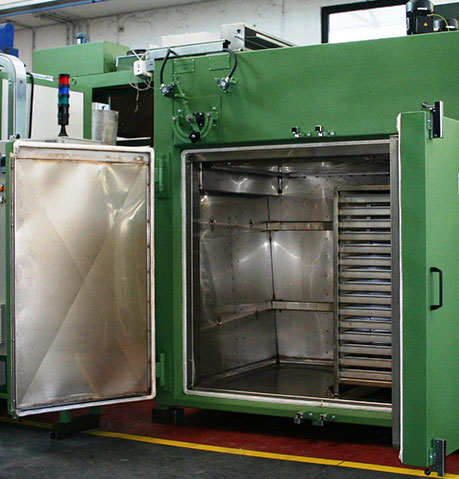

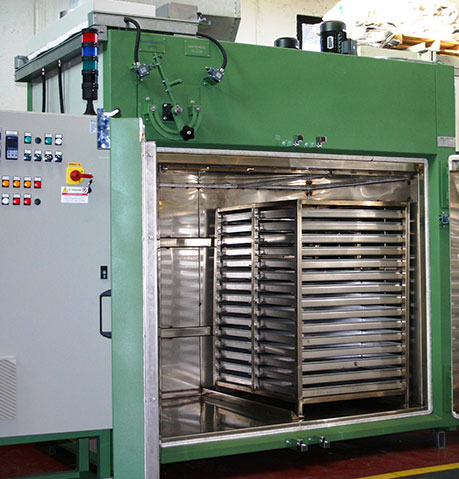

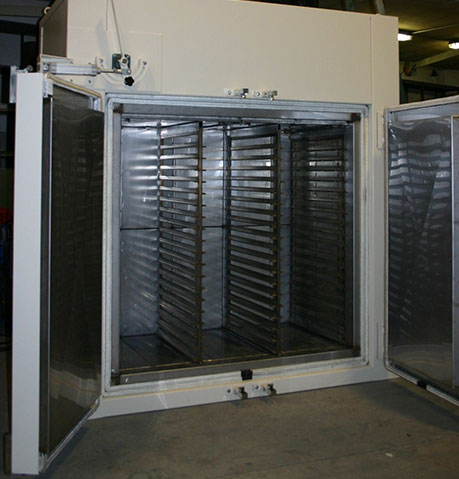

Dollies with mobile or fixed shelves in stainless steel sheet.
Specific equipment for individual needs.
| Model PT ESPT |
Useful dimensions of the chamber | Rated power | Capacity | ||
| Width | Height | Depth | Kw | Lt | |
| PT ESPT/1 | 1600 | 1550 | 830 | 65 | 1990 |
| PT ESPT/2 | 1850 | 1200 | 1450 | 75 | 3220 |
| PT ESPT/3 | 1700 | 1650 | 1350 | 85 | 3440 |
