PT EPT

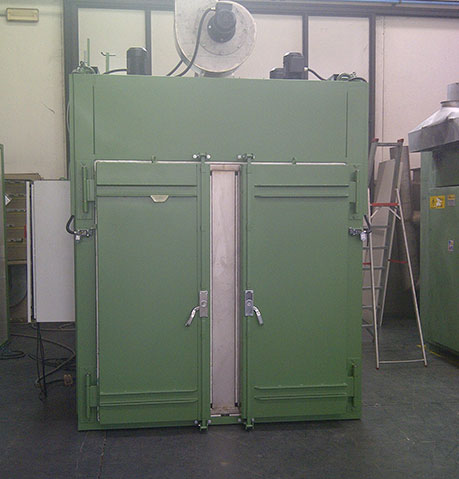

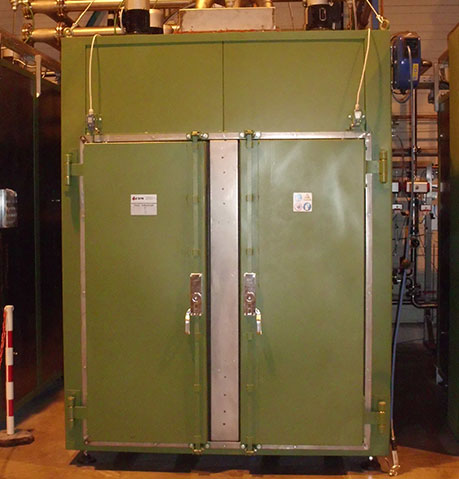

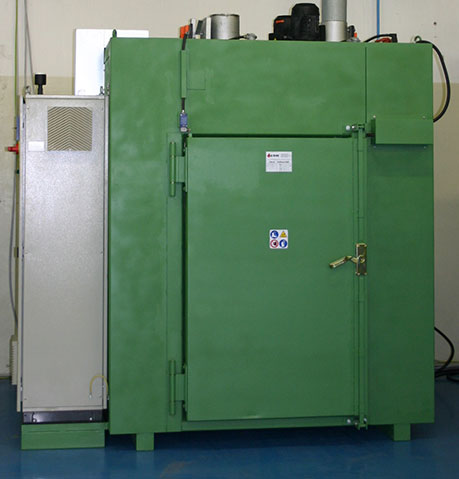

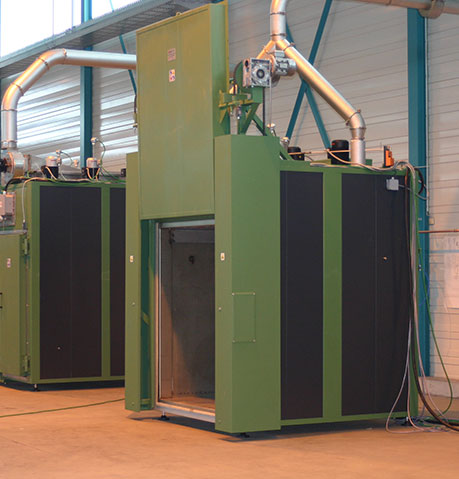

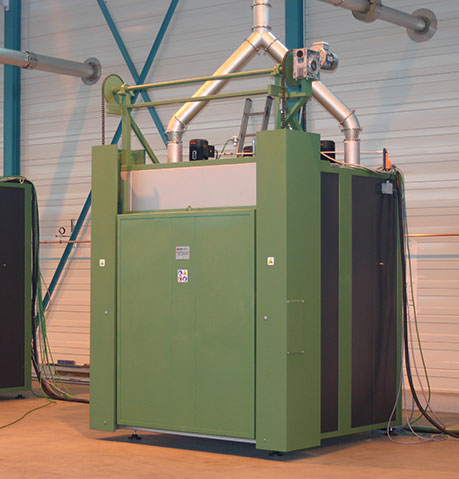

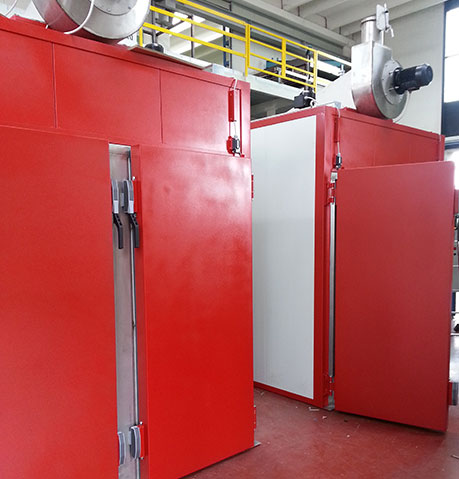

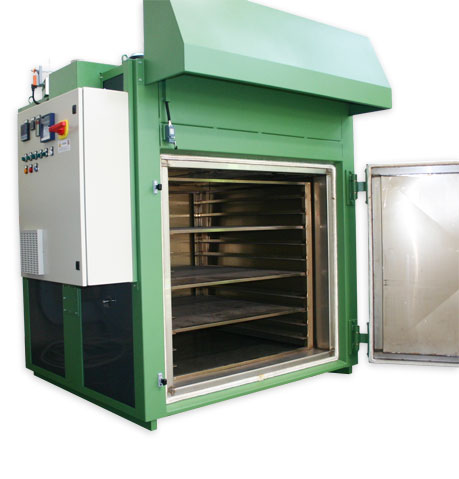

INDUSTRIAL VENTILATED CHAMBER OVEN
MAX 200°
CTM has been on the market for many years for the treatment of PTFE. This model, designed for the evaporation of the powders, belongs to the dedicated line of furnaces "PT" conceived precisely for the treatment of these polymers.
CTM has been on the market for many years for the treatment of PTFE. This model, designed for the evaporation of the powders, belongs to the dedicated line of furnaces "PT" conceived precisely for the treatment of these polymers.

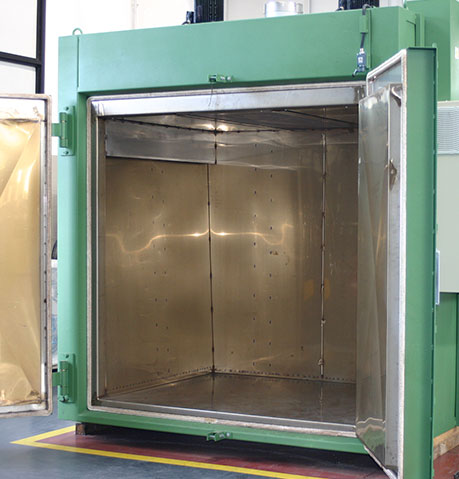

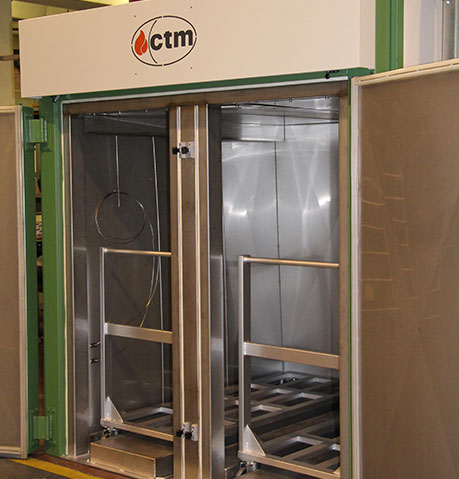

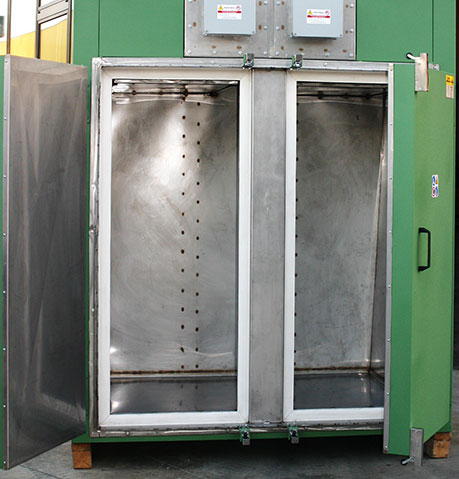

This realization with open loop with horizontal split currents consists of a metallic structure with internal walls in stainless steel sheet forming the heat absorbing, high thickness sandwich with cavity for air circulation.
Heating is obtained with sets of electrical resistances with low surface load.
Forced air circulation, optimized by flow rate adjusters, uses special fans for high temperatures.

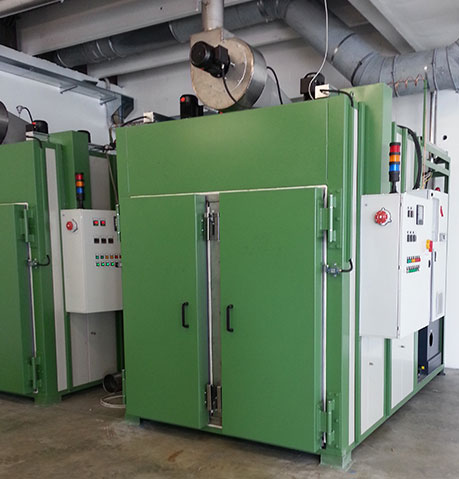

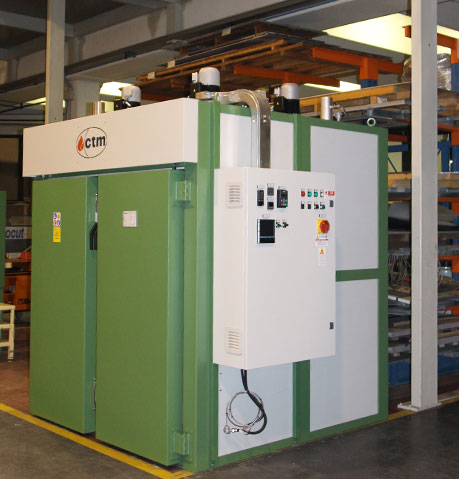

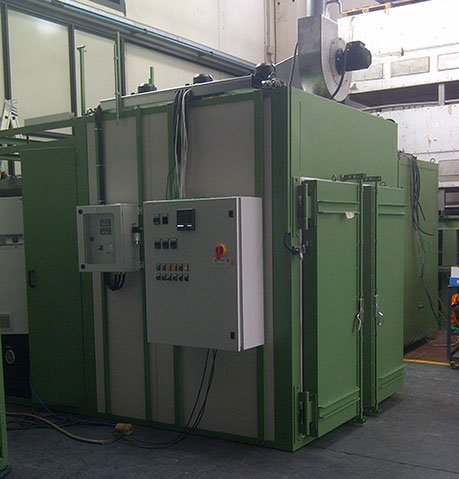

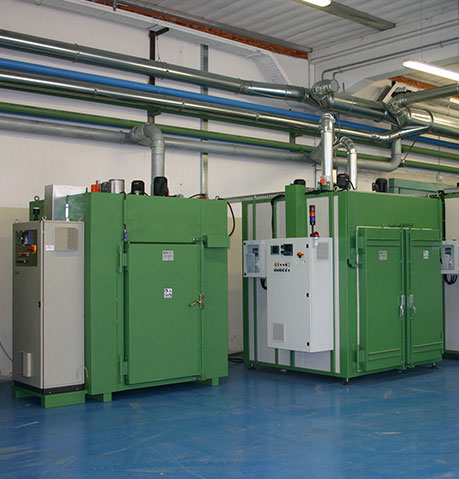

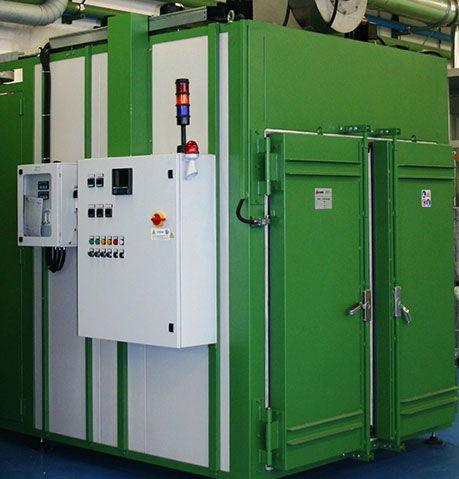

A control panel automatically manages the extraction of the moist air from the furnace chamber while, if required, input dryers or output condensers can be applied for the total replacement of the recycled air.
- Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.

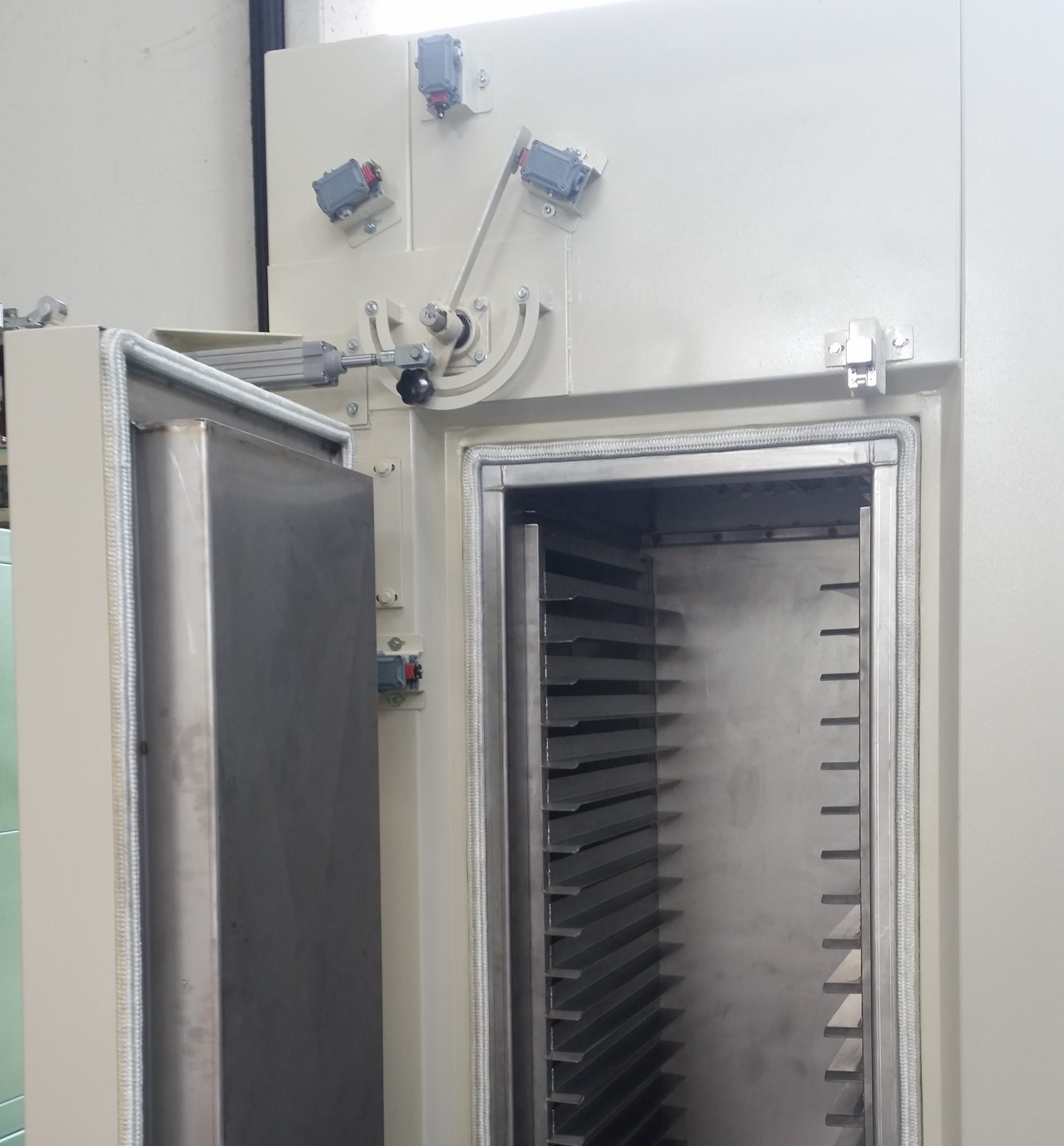

- Door opening with hinge and safety system.
- Evaporation of PTFE powders

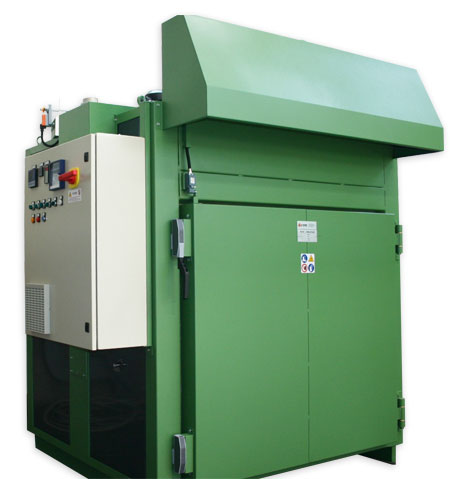

Hood positioned on the door.

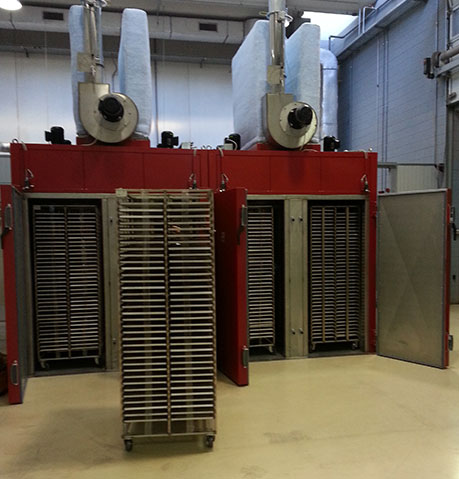

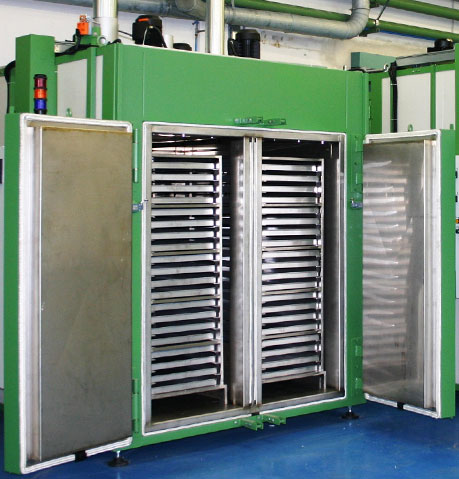

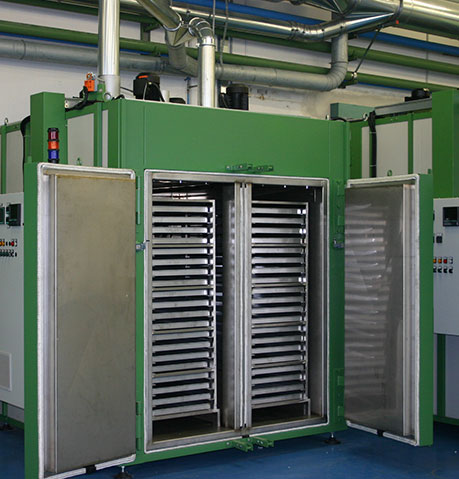

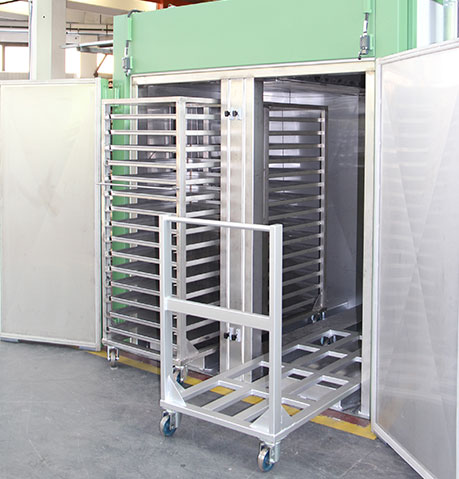

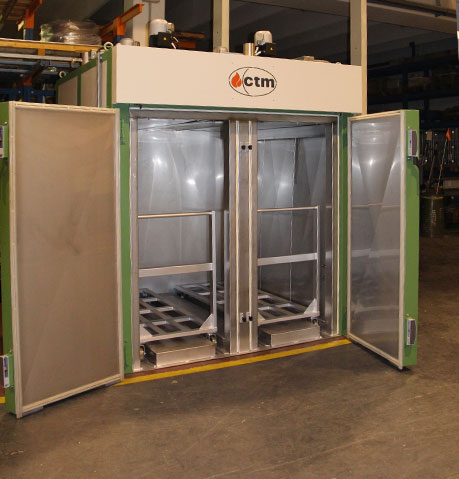

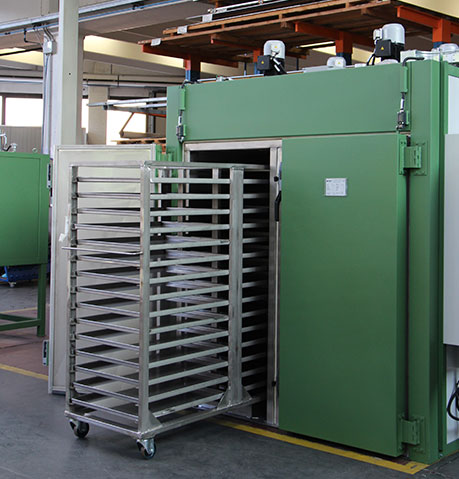

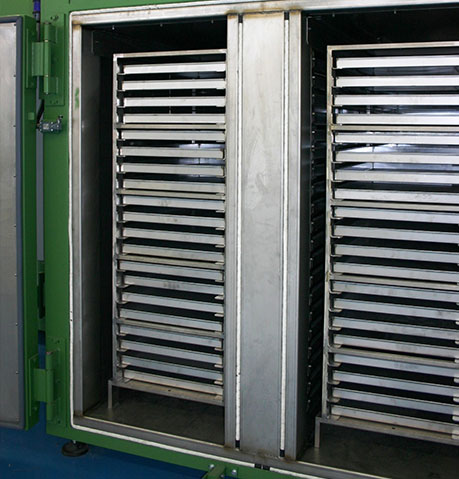

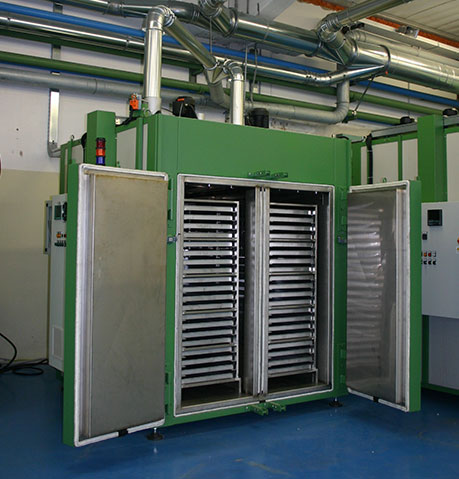

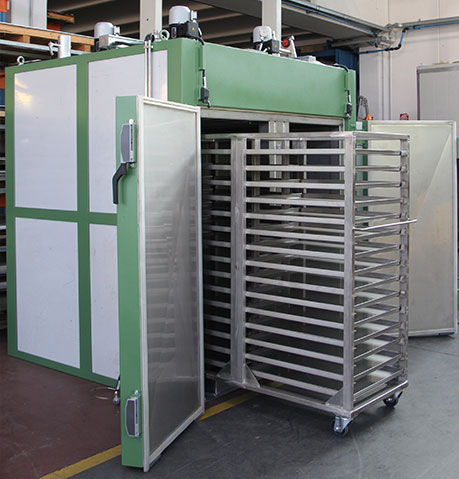

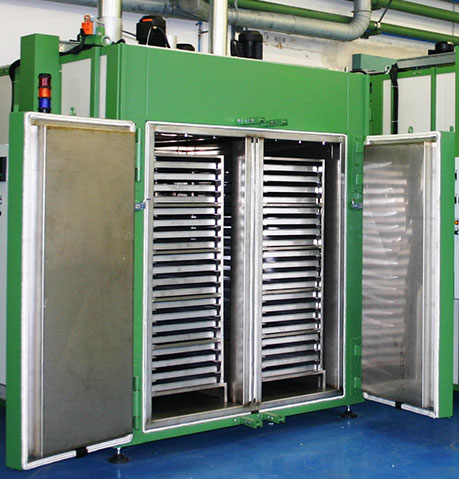

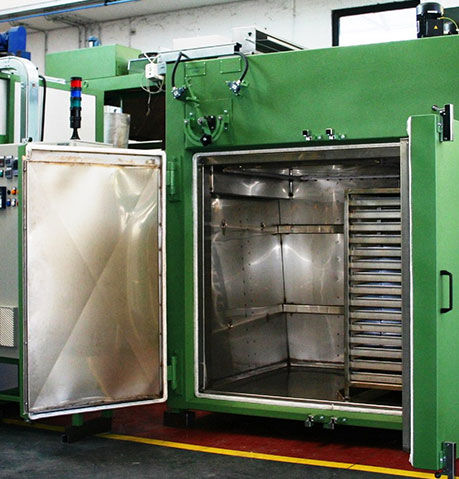

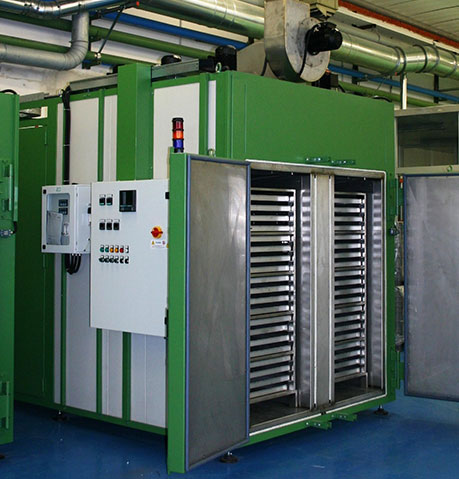

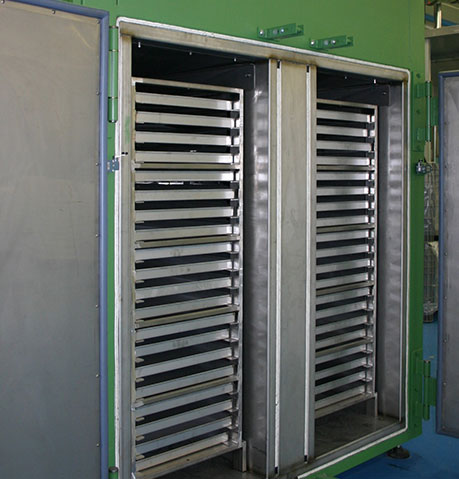

Dollies with mobile or fixed shelves in stainless steel sheet.
Specific equipment for individual needs.
| Model PT EPT |
Useful dimensions of the chamber | Rated power | Capacity | ||
| Width | Height | Depth | Kw | Lt | |
| PT EPT/1 | 1500 | 1700 | 850 | 36 | 2150 |
| PT EPT/2 | 1500 | 1700 | 1700 | 72 | 4350 |
| PT EPT/3 | 1900 | 1700 | 850 | 45 | 2750 |
| PT EPT/4 | 1900 | 1700 | 1700 | 90 | 5490 |
