PEV
INDUSTRIAL VENTILATED PIT OVEN
MAX 450°

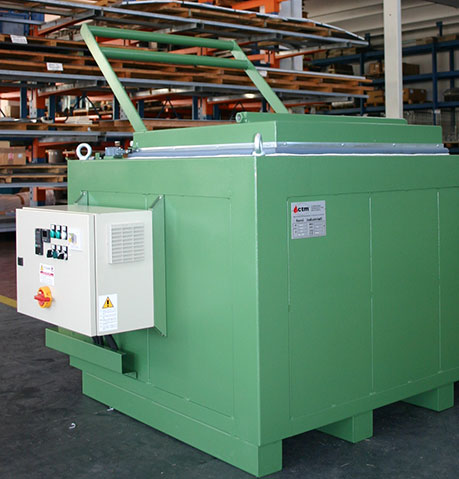

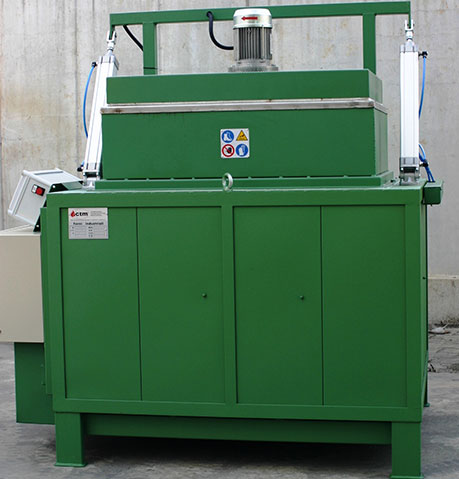

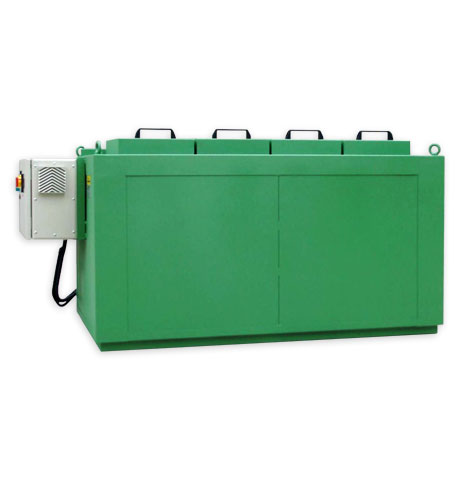

The ventilated chamber furnace PEV is a metal construction with walls of stainless steel sheet. Designed to meet preheating and annealing needs in metallurgy, thanks to its versatility, it is used also for plastic and chemical applications (drying, ageing, softening and polymerizations).
The ventilated chamber furnace PEV is a metal construction with walls of stainless steel sheet. Designed to meet preheating and annealing needs in metallurgy, thanks to its versatility, it is used also for plastic and chemical applications (drying, ageing, softening and polymerizations). The range of "VEP" furnaces features two temperature ranges: up to 200°C and the model that reaches 400°C.
Heating is obtained with sets of electrical resistances placed in series in the air circuit.
We propose versions for closed or open loop with horizontal or vertical split currents while forced air circulation takes place by means of special fans for high temperatures.

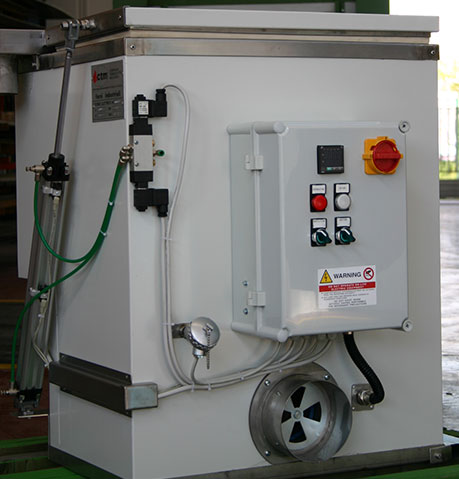

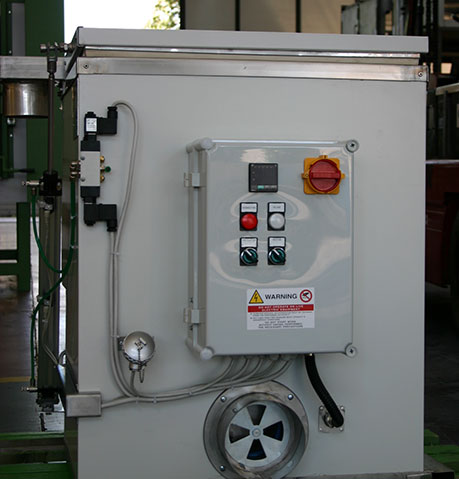

- Electronic adjustments of temperature through static power relays with the possibility of programming and data logging.

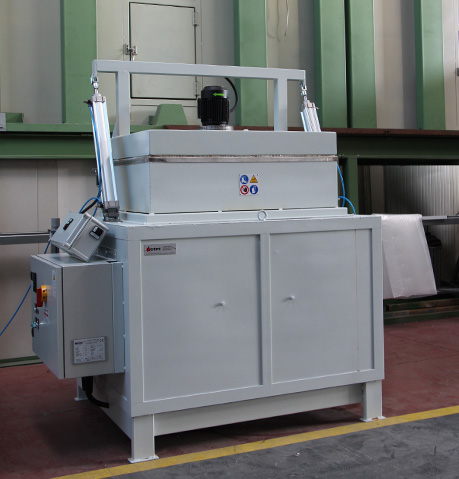

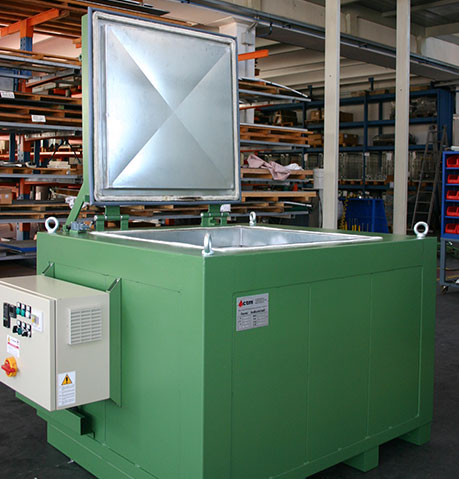

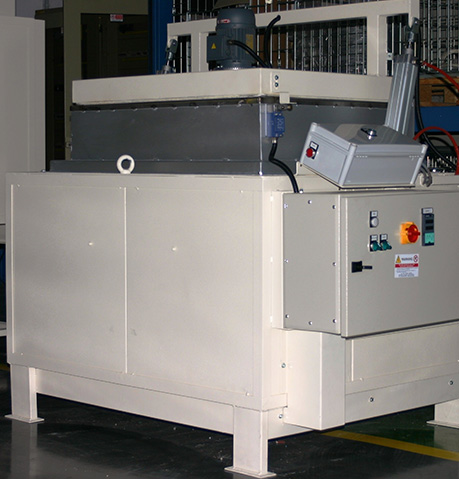

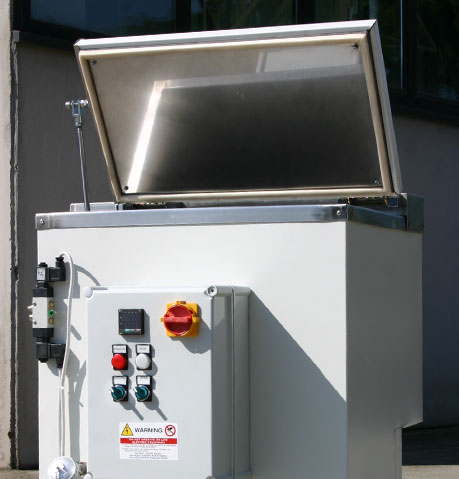

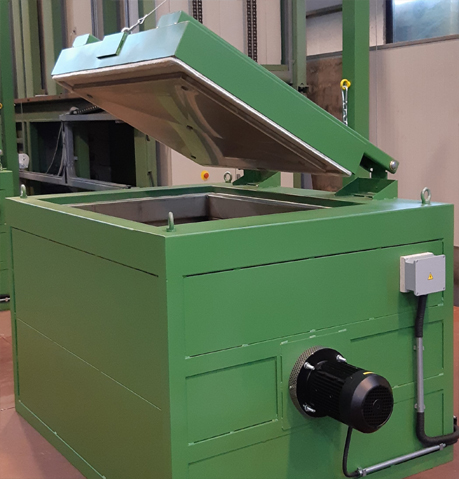

- Cover opening/closing system: manual or servo-assisted.
If required, precision instrumentation that will allow the control of the cooling cycle can be installed.
- Annealing of light alloys
- Ageing of plastics
- Softening of plastics
- Drying of powders and granulates for molding
- Paint drying
- Polyurethane treatment
- Polymerization of composite materials
- Preheating of packs and die plates
- Preheating of filters
- Preheating of extrusion screws
- Preheating of molds components

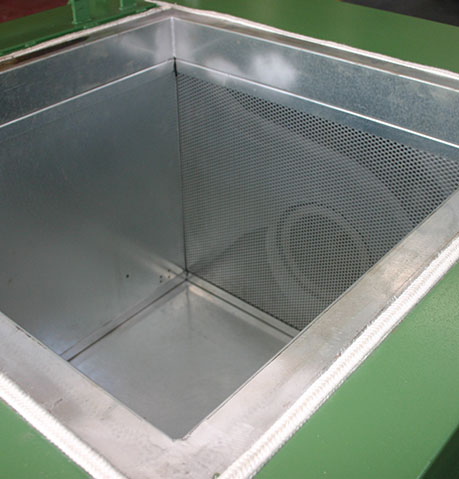

Stainless steel baskets.
Specific equipment for individual needs.
| Model PEV |
Useful dimensions of the chamber | Rated power | Capacity | ||
| Width | Height | Depth | Kw | Lt | |
| PEV 200/0 | 1000 | 600 | 800 | 10 | 480 |
| PEV 200/1 | 1300 | 500 | 1300 | 12 | 845 |
| PEV 200/2 | 1500 | 800 | 1000 | 15 | 1200 |
| PEV 200/3 | 2000 | 1000 | 1200 | 24 | 2400 |
| PEV 400/0 | 1000 | 600 | 800 | 15 | 480 |
| PEV 400/1 | 1300 | 500 | 1300 | 18 | 845 |
| PEV 400/2 | 1500 | 800 | 1000 | 24 | 1200 |
| PEV 400/3 | 2000 | 1000 | 1200 | 36 | 2400 |
